120W Monocrystalline Solar Suitcase with Controller

120W Small: Big power, slim. Elite Quality: Made to endure. Deep Tech: High-efficiency cells. Solid Frame: Wind/Snow ready. Fast Mount: Pre-drilled ease.

Contact Us
Product Description: A complete, portable solar power system built into a rugged briefcase.
Simply unfold it, point it at the sun, and connect the alligator clips to your 12/24v battery.
No permanent installation required, making it ideal for weekend camping trips.
Product Features:
Integrated System:Built-in 20A waterproof charge controller with LCD display(If need can be choosed).

Heavy-Duty Build:Sturdy aluminum frame with protective corner guards and heavy-duty latches.

Adjustable Tilt Legs:Corrosion-resistant aluminum stand for optimal sun angle adjustment.

Ready to Use:Includes a protective canvas case and battery alligator clips.


Product Features:
Integrated System:Built-in 20A waterproof charge controller with LCD display.
Heavy-Duty Build:Sturdy aluminum frame with protective corner guards and heavy-duty latches.
Adjustable Tilt Legs:Corrosion-resistant aluminum stand for optimal sun angle adjustment.
Ready to Use:Includes a protective canvas case and battery alligator clips.


Product Specification:
ELECTRICAL SPECIFICATIONS
Model Type
PNA-100
PNA-110
PNA-120
PNA-150
Nominal Maximum Power(Pmax)
100W
110W
120W
150W
Optimum Operating.Voltage(Vmp)
19.3V
18.6V
19.6V
20.16V
Optimum Operating Current (Imp)
5.91A
5.91A
6.12A
10.66A
Open Circuit Voltage(Voc)
22.62V
22.52V
23.48V
24.19V
Short Circuit Current(lsc)
6.21A
6.21A
6.43A
1
Cells style
210
210
210
210
Product Size(mm)
880*530*25
880*610*25
880*685*25
1100*670*30
Power Tolerance
0 to+3%
0 to+3%
0 to+3%
0 to+3%
Maximum System Voltage
DC 1500V
DC 1500V
DC 1500V
DC 1500V
Operating Temperature
-40℃~+85℃
-40℃~+85℃
-40℃~+85℃
-40℃~+85℃
Maximum Series Fuse Rating
20A
20A
20A
20A
Number of Bypass Diode
3
3
3
3

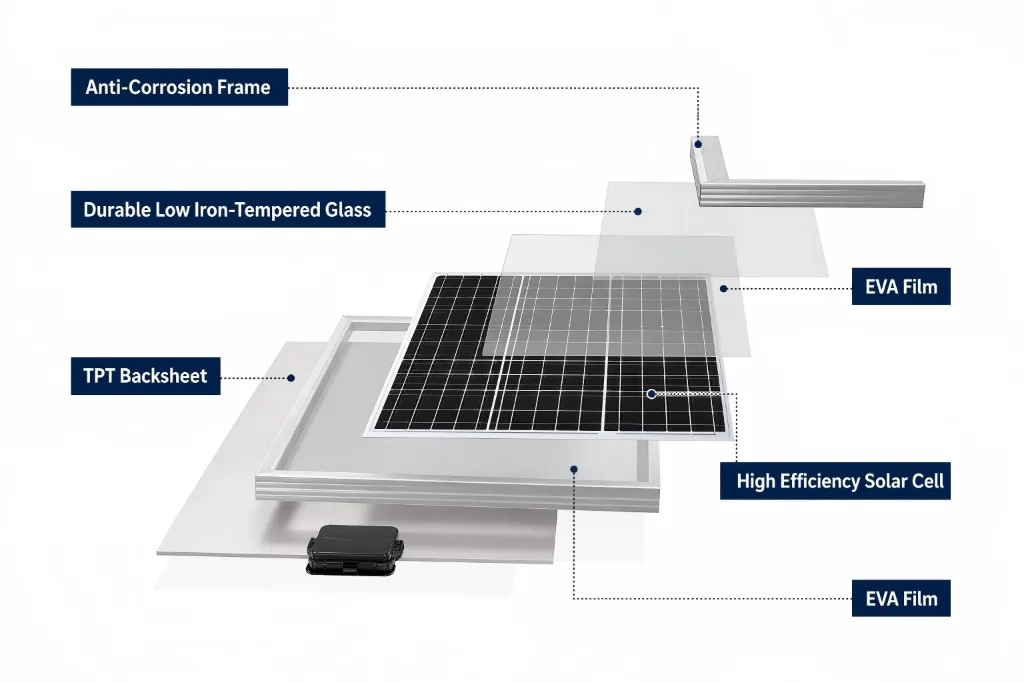

Solar Panel's Material:


Solar Panel's Advantage:



Solar Panel's Application:




Payment:









Payment Term




T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
Other payment
Delivery Time
7~20days after receiving payment for one container
