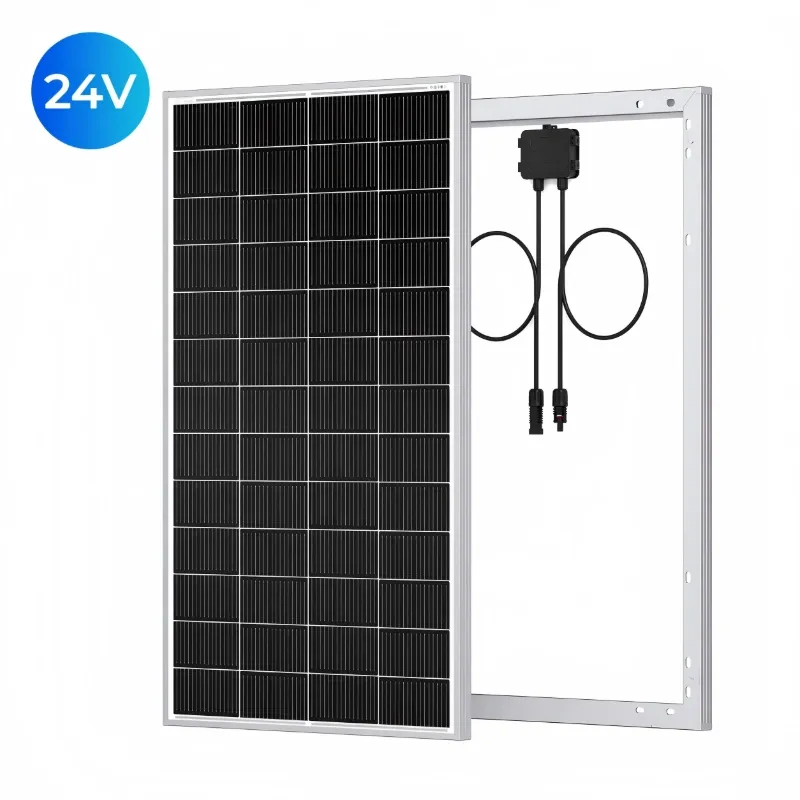

200W All-Weather Monocrystalline Solar Panel

200W Dense: Compact, reliable power. Pure Build: Rugged, quality parts. Deep Cell: Tech for efficiency. Iron Clad: Built for loads. Bolt Ready: Rapid-mount holes.

Contact Us

Product Description:

Engineered for extreme climates. Whether you are winter camping or living in high-latitude regions, this 200W all-weather solar panel maintains excellent voltage output even in freezing temperatures and low-light winter conditions. Solar Panel's Features:
  • Low-Temperature Optimization:Minimal voltage drop in sub-zero environments.
  • Snow-Shedding Surface:Specially coated glass helps snow slide off easily.
  • Rugged Construction:Thickened frame prevents warping from freeze-thaw cycles.
  • High-Grade Cables:Includes cold-resistant solar cables that remain flexible in freezing weather.


Solar Panel's Material:




Solar Panel's Specification:

Specifcations
Output Cables: 1.5m
Connectors: Solar Connectors
Maximum Power: 200W
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 31.1V
Open-Circuit Voltage (Voc): 38.5V
Optimum Operating Current (Imp): 6.43A
Short-Circuit Current (Isc): 6.75A
Weight: 10.8 kg
Dimensions: 1250*770*30mm
Operating Temperature:  -40°F to 194°F(-40°C to +90°C)
Panel Leads (Pair): 14AWG (1.2 mv long)
Warranty: 10-year output warranty & material and workmanship warranty
Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
Built-in Components
Junction Box: IP65
Solar Connectors: IP67
Panel Leads (Pair):14AWG

Solar Panel's Application




Offer Customized solar Panel Contact: sales1@polynetpv.com
