GLASS SOLAR PANEL

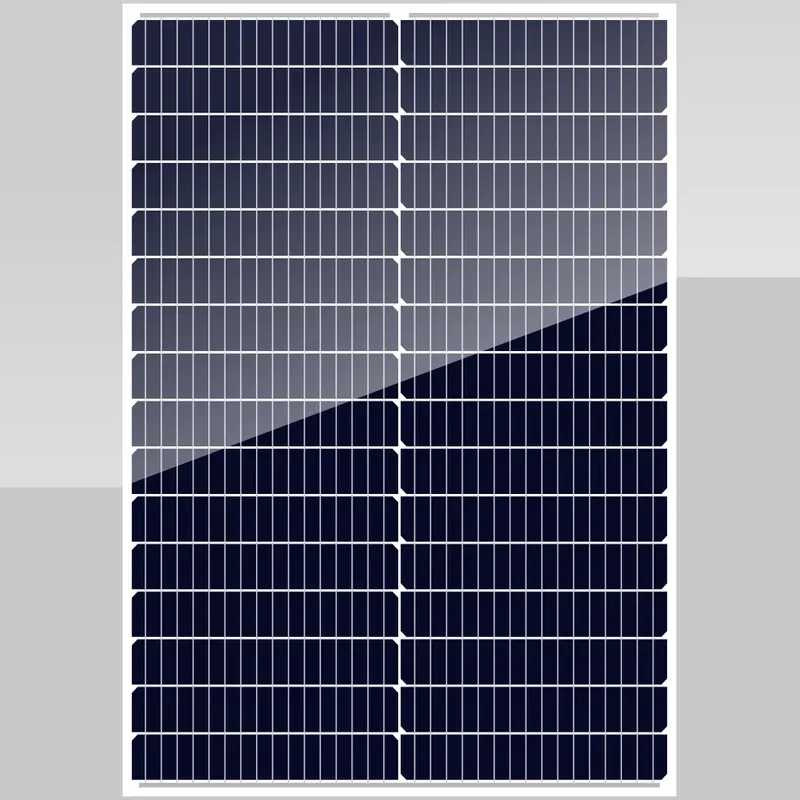

40W Custom Monocrystalline Solar Panel PNM40M10
PNM40M10 is a 40W monocrystalline solar panel (17.90% efficiency, 565×395×25 mm, 3.0 kg) for solar lighting, cameras, IoT, RV and marine OEM applications.
Specifications
- Maximum Power (Pmax)
- 40W
- Module Efficiency
- 17.90%
- Dimensions
- 565×395×25 mm
- Weight
- 3.0 kg
- Operating Temperature
- -40~+85°C
- Solar Cells
- Monocrystalline 182×30.33 mm (2×16 pcs)
Product Description
The PNM40M10 is a compact 40W monocrystalline glass solar panel from the PNM Series Customized PV Module line of Polynet Solar Solutions (Hefei Polynet Products Co., Ltd.). It is a custom solar panel built for equipment manufacturers and system integrators who need off-grid power in a small footprint that standard off-the-shelf modules cannot fill. Measuring 565×395×25 mm and weighing just 3.0 kg, it integrates into solar lighting, surveillance cameras, IoT devices and mobile platforms. As a customized PV module, it adapts to your equipment layout — cable length can be customized, with MC4 compatible connectors as standard.
Product Features
Feature | Description |
Compact Custom Build | 565×395×25 mm and 3.0 kg — a small-format monocrystalline module for space-limited equipment designs. |
Strip-Cell Mono Layout | 2×16 pcs of 182×30.33 mm monocrystalline cells with 17.90% module efficiency. |
Positive Power Tolerance | 0 ~ +4.99W tolerance, so each module measures at or above its rated 40W. |
Tough Glass-Framed Build | 2.0 mm tempered front glass in an aluminum frame, rated for 5400Pa front / 2400Pa rear mechanical load. |
Sealed, Ready-to-Wire Output | IP67 junction box, 50 cm output cable (cable length can be customized) and MC4 compatible connectors. |
Wide Temperature Range | Operating range of -40~+85°C for outdoor deployments in hot and cold climates. |
ELECTRICAL SPECIFICATIONS | |
Maximum Power (Pmax) | 40W |
Open Circuit Voltage (Voc) | 22.18V |
Short Circuit Current (Isc) | 2.27A |
Maximum Power Voltage (Vmp) | 18.69V |
Maximum Power Current (Imp) | 2.14A |
Module Efficiency | 17.90% |
Power Tolerance | 0 ~ +4.99W (positive tolerance) |
Maximum System Voltage | 700Vdc (IEC/UL) |
Maximum Series Fuse Rating | 10A |
MECHANICAL SPECIFICATIONS | |
Dimensions | 565×395×25 mm |
Weight | 3.0 kg |
Solar Cells | Monocrystalline 182×30.33 mm (2×16 pcs) |
Front Glass | 2.0 mm tempered glass |
Frame | Aluminum |
Junction Box | IP67 |
Output Cables | 50 cm (cable length can be customized) |
Connectors | MC4 Compatible |
Mechanical Load | 5400Pa (front) / 2400Pa (rear) |
TEMPERATURE CHARACTERISTICS | |
Temperature Coefficient of Pmax | -0.290%/°C |
Temperature Coefficient of Voc | -0.250%/°C |
Temperature Coefficient of Isc | +0.045%/°C |
Operating Temperature | -40~+85°C |
Nominal Operating Cell Temperature (NOCT) | 45±2°C |
PACKING CONFIGURATION | |
Module Dimensions | 565×395×25 mm |
Pallet Weight | 282 kg |
Pieces per Pallet | 84 pcs |
PAYMENT & DELIVERY | |
T/T — EXW / FOB | 30% T/T in advance, with the balance paid before shipment |
T/T — CFR(C&F) / CIF | 30% T/T in advance, with the balance paid against copy of B/L |
L/C | L/C at sight for amounts above 50,000 USD |
Western Union | For amounts lower than 5,000 USD |
Delivery Time | 7~20 days after receiving payment for one container |
Solar Panel's Material
The PNM40M10 combines 182×30.33 mm monocrystalline cells in a 2×16 layout with 2.0 mm tempered front glass and an aluminum frame. An IP67 junction box and MC4 compatible connectors complete the build.
Solar Panel's Advantage
Monocrystalline cells in a 2×16 strip layout deliver 17.90% module efficiency, and the 0 ~ +4.99W positive power tolerance means each panel measures at or above its nameplate 40W. At 565×395×25 mm and 3.0 kg, the module fits compact equipment where larger standard panels cannot — and cable length can be customized to your wiring layout.
Solar Panel's Application
A practical power source for solar lighting, surveillance cameras, IoT devices, RV/marine systems and outdoor equipment. The -40~+85°C operating range supports installation in both hot and cold climates.
Contact Us
Hefei Polynet Products Co., Ltd. — Polynet Solar Solutions
Email: sales1@polynetpv.com
Website: www.polynetpv.com
Frequently Asked Questions
Can the cable length be customized?
Yes. The PNM40M10 comes standard with a 50 cm output cable, and the cable length can be customized to match your equipment layout.
What is the power tolerance of the PNM40M10?
The power tolerance is 0 ~ +4.99W — a positive tolerance, so each module's measured power is at or above the rated 40W.
What connectors does the panel use?
It uses MC4 compatible connectors, paired with an IP67 junction box and a 50 cm output cable.
What is the maximum system voltage?
The maximum system voltage is 700Vdc (IEC/UL), and the maximum series fuse rating is 10A.
How many panels are packed per pallet?
84 pcs per pallet, and each pallet weighs 282 kg.
