GLASS SOLAR PANEL

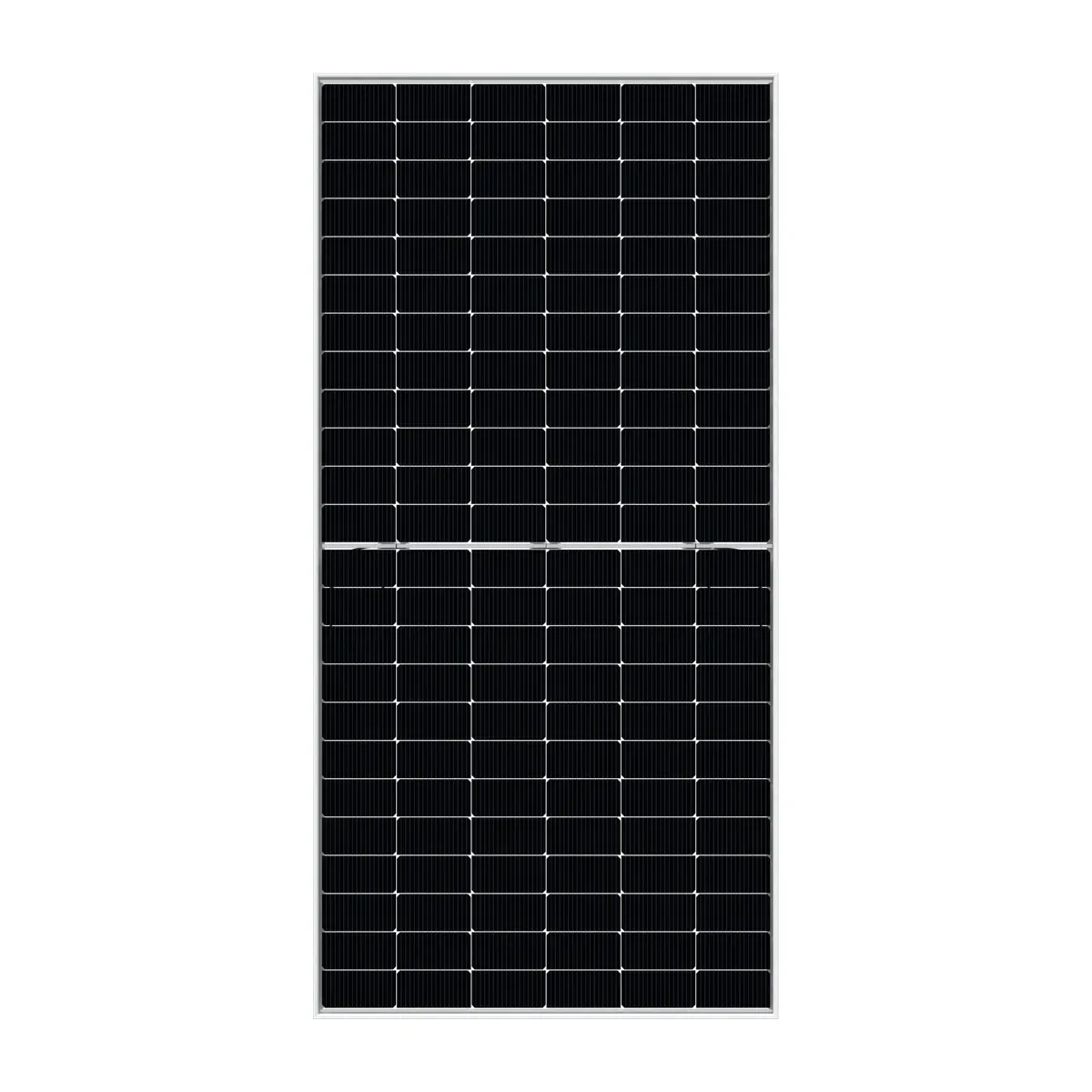

430-450 W Custom Monocrystalline Solar Panel PNM430450M10-108D5
PNM430450M10-108D5 is a 430-450 W monocrystalline solar panel (22.02% efficiency, 1722x1134×30mm, 23.4 kg) for solar lighting, cameras, IoT, RV and marine OEM.
Specifications
- Maximum Power (Pmax)
- 430 W
- Module Efficiency
- 22.02%
- Dimensions
- 1722x1134×30mm
- Weight
- 23.4 kg
- Operating Temperature
- -40~+85℃
- Solar Cells
- HJT 182 mm (2x54pcs)
Product Description
The PNM430450M10-108D5 is a 430-450 W monocrystalline solar panel from the PNM Series Customized PV Module line of Polynet Solar Solutions (Hefei Polynet Products Co., Ltd.), built as 182 mm 108Cells Double Glass Bifacial HJT Mono Half Cell PV Module. It uses HJT 182 mm (2x54pcs) and AR Coated 2+2 mm tempered glass, delivering 430 W under STC with 22.02% module efficiency and a 0, +4.99 W power tolerance. Measuring 1722x1134×30mm and weighing 23.4 kg, it integrates into commercial rooftops, solar carports, ground mounts and off-grid power systems. As a customized PV module, it adapts to your project layout — output cable length can be customized, with MC4 compatible connectors as standard.
Product Features
Feature | Description |
Large-Format Mono Build | 1722x1134×30mm and 23.4 kg — a large-format monocrystalline module for C&I rooftops, carports and ground mounts. |
Advanced Cell Technology | HJT 182 mm (2x54pcs) with 22.02% module efficiency. |
Positive Power Tolerance | 0, +4.99 W tolerance, so each module measures at or above its rated output. |
Tough Glass-Framed Build | AR Coated 2+2 mm tempered glass in an Anodized aluminum alloy frame, rated for Front Side Max. 5400 Pa, Rear Side Max. 2400 Pa. |
Sealed, Ready-to-Wire Output | IP68 junction box, 4.0mm², 1200 mm (+), 1200 mm (-) output cables and MC4 compatible connectors. |
Wide Temperature Range | Operating range of -40~+85℃ for outdoor deployments in hot and cold climates. |
ELECTRICAL SPECIFICATIONS | |
Maximum Power (Pmax) | 430 W |
Open Circuit Voltage (Voc) | 41.37V |
Short Circuit Current (Isc) | 12.95A |
Maximum Power Voltage (Vmp) | 34.60V |
Maximum Power Current (Imp) | 12.43A |
Module Efficiency | 22.02% |
Power Tolerance | 0, +4.99 W |
Maximum System Voltage | 1500Vdc (IEC / UL) |
Maximum Series Fuse Rating | 30A |
MECHANICAL SPECIFICATIONS | |
Dimensions | 1722x1134×30mm |
Weight | 23.4 kg |
Solar Cells | HJT 182 mm (2x54pcs) |
Glass | AR Coated 2+2 mm tempered glass |
Frame | Anodized aluminum alloy |
Junction Box | IP68 |
Output Cables | 4.0mm², 1200 mm (+), 1200 mm (-), length can be customized |
Connectors | MC4 Compatible |
Mechanical Load | Front Side Max. 5400 Pa, Rear Side Max. 2400 Pa |
TEMPERATURE CHARACTERISTICS | |
Temperature Coefficient of Pmax | -0.260%/℃ |
Temperature Coefficient of Voc | -0.240%/℃ |
Temperature Coefficient of Isc | +0.040%/℃ |
Operating Temperature | -40~+85℃ |
Nominal Operating Cell Temperature (BSTC) | 44±2℃ |
PACKING CONFIGURATION | |
Pallet Dimensions | 1750x1140×1254mm |
Pieces per Pallet | 37 Pcs |
Pallets per Container | 26 Pallets |
Pieces per Container | 962 Pcs |
PAYMENT & DELIVERY | |
T/T — EXW / FOB | 30% T/T in advance, with the balance paid before shipment |
T/T — CFR(C&F) / CIF | 30% T/T in advance, with the balance paid against copy of B/L |
L/C | L/C at sight for amounts above 50,000 USD |
Western Union | For amounts lower than 5,000 USD |
Delivery Time | 7~20 days after receiving payment for one container |
Solar Panel's Material
The PNM430450M10-108D5 combines HJT 182 mm (2x54pcs) with AR Coated 2+2 mm tempered glass and an Anodized aluminum alloy frame. An IP68 junction box and MC4 compatible connectors complete the build.
Solar Panel's Advantage
HJT 182 mm (2x54pcs) cells deliver 22.02% module efficiency, and the 0, +4.99 W power tolerance means each panel measures at or above its nameplate output. At 1722x1134×30mm and 23.4 kg, the module fits large C&I and ground-mount designs — and output cable length can be customized to your wiring layout.
Solar Panel's Application
A practical power source for commercial and industrial rooftops, solar carports, ground-mounted plants, off-grid storage systems and outdoor equipment. The -40~+85℃ operating range supports installation in both hot and cold climates.
Contact Us
Hefei Polynet Products Co., Ltd. — Polynet Solar Solutions
Email: sales1@polynetpv.com
Website: www.polynetpv.com
Frequently Asked Questions
Can the output cable length be customized?
Yes. The PNM430450M10-108D5 comes standard with 4.0mm², 1200 mm (+), 1200 mm (-) output cables, and the cable length can be customized to match your project layout.
What is the power tolerance of the PNM430450M10-108D5?
The power tolerance is 0, +4.99 W — a positive tolerance, so each module's measured power is at or above its rated wattage.
What connectors does the panel use?
It uses MC4 compatible connectors, paired with an IP68 junction box and 4.0mm², 1200 mm (+), 1200 mm (-) output cables.
What is the maximum system voltage?
The maximum system voltage is 1500Vdc (IEC / UL), and the maximum series fuse rating is 30A.
How many panels are packed per pallet?
37 Pcs per pallet, with pallet dimensions of 1750x1140×1254mm.
