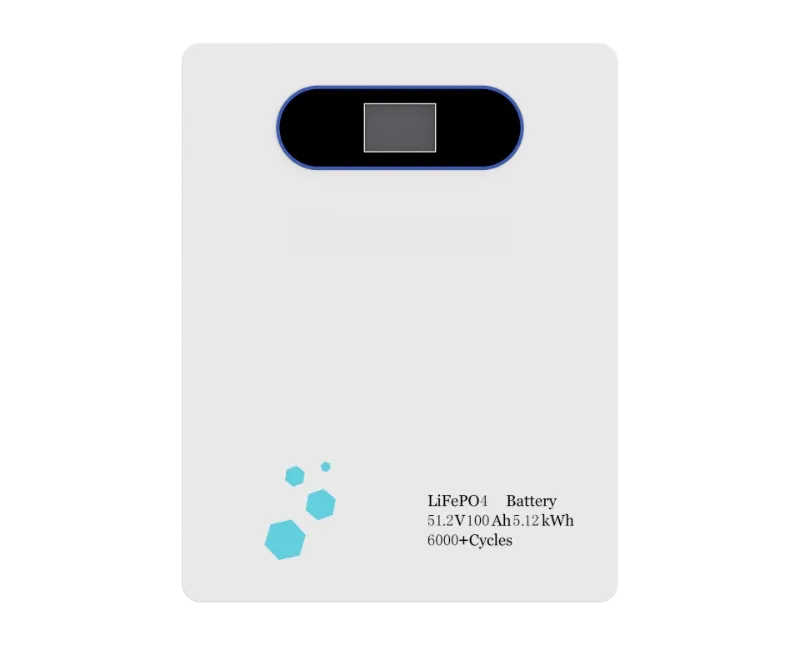

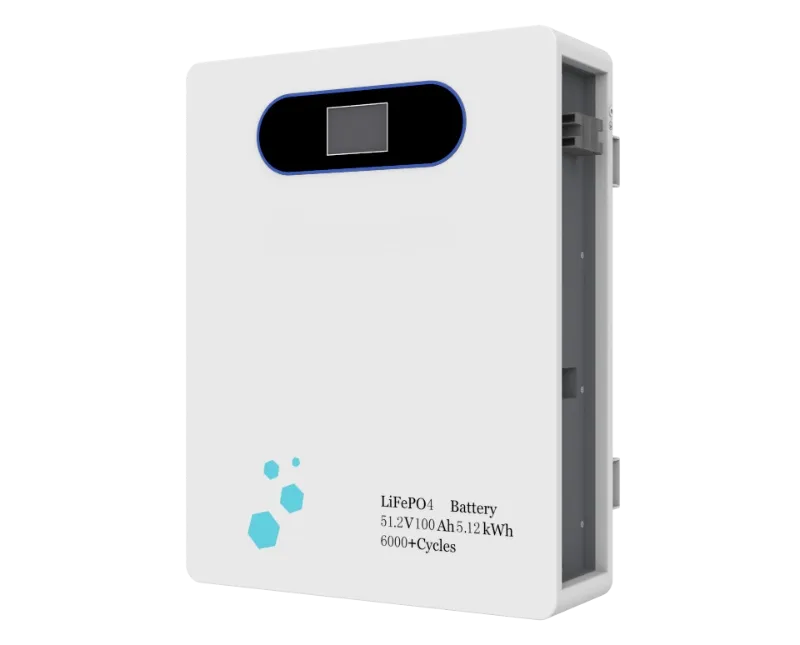

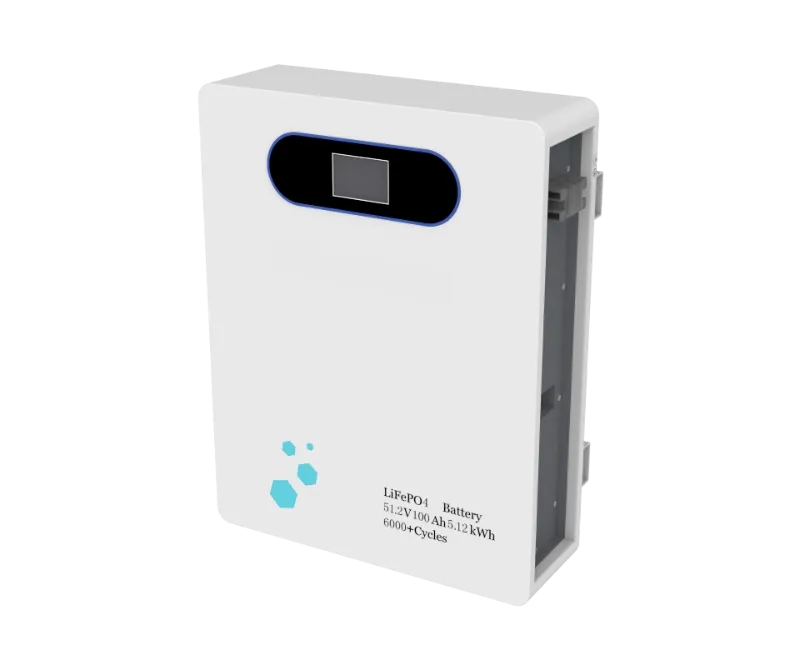

Wall Mounted 51.2V 100ah LiFePO4 Lithium Battery
51.2V 100Ah 5.12kWh Wall-Mounted LiFePO4 Lithium Battery
51.2V 100Ah 5.12kWh wall-mounted LiFePO4 lithium battery (4608Wh usable, >6000 cycles, CAN/RS-485) for home solar energy storage and backup power.
Specifications
- Nominal Voltage
- 51.2V
- Nominal Capacity
- 5120Wh
- Usable Capacity
- 4608Wh
- Cycle Life
- >6000 cycles @80%DOD
- Dimension
- 460*590*182.5mm
- Weight
- 50kg
Product Description
The 51.2V 100Ah LiFePO4 lithium battery is a wall-mounted 5.12kWh home energy storage unit from the home battery line of Polynet Solar Solutions (Hefei Polynet Products Co., Ltd.). Of its 5120Wh nominal capacity, 4608Wh is usable, and the built-in smart BMS handles monitoring and protection over CAN/RS-485. At 460*590*182.5mm and 50kg, the slim housing mounts on a wall in a utility room or garage, and the LiFePO4 (LFP) cells are rated for more than 6000 cycles at 80%DOD.
Product Features
Feature | Description |
Wall-Mounted Slim Design | 460*590*182.5mm and 50kg — a slim wall-mounted housing that saves floor space in homes. |
Long Cycle Life | More than 6000 cycles at 25℃±2℃ with 80%DOD, and a design life of over 10 years. |
Built-in Smart BMS | Monitors system voltage, current, cell voltage and cell/module temperature, with SOC by intelligent algorithm. |
Inverter Compatibility | Communicates over CAN/RS-485 with mainstream hybrid inverters for home solar storage systems. |
Safe LFP Chemistry | LiFePO4 (LFP) cells for thermal stability and home safety, with all-time battery monitoring. |
Home Battery Family | Part of a 5.12kWh / 10.24kWh / 14.34kWh wall-mounted and wheeled home battery line. |
GENERAL | |
Battery Type | LiFePO4 (LFP) |
Nominal Voltage | 51.2V |
Nominal Capacity | 5120Wh |
Usable Capacity | 4608Wh |
Design Life | 10+ years (@25℃/77℉) |
PHYSICAL | |
Dimension | 460*590*182.5mm |
Weight | 50kg |
ELECTRICAL | |
Cycle Life | >6000 cycles @25℃±2℃, 80%DOD |
Discharge Voltage | 44.8V |
Charge Voltage | 57.6V |
Charge/Discharge Current | 50A (Recommended), 100A (Max) |
Internal Resistance | ≤30mΩ |
BMS | |
Power Consumption | <2W (Work), <100mW (Sleep) |
Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature |
SOC | Intelligent algorithm |
Communication | CAN/RS-485 |
OPERATION | |
Operating Temperature Range | Charge 0℃~50℃; Discharge -20℃~50℃ |
Transport or Storage Temperature Range | -10℃~35℃ |
Humidity | 15%~85% (No Condensing) |
WARRANTY | |
Product Warranty | 5 Years |
PAYMENT & DELIVERY | |
T/T — EXW / FOB | 30% T/T in advance, with the balance paid before shipment |
T/T — CFR(C&F) / CIF | 30% T/T in advance, with the balance paid against copy of B/L |
L/C | L/C at sight for amounts above 50,000 USD |
Western Union | For amounts lower than 5,000 USD |
Delivery Time | 7~20 days after receiving payment for one container |

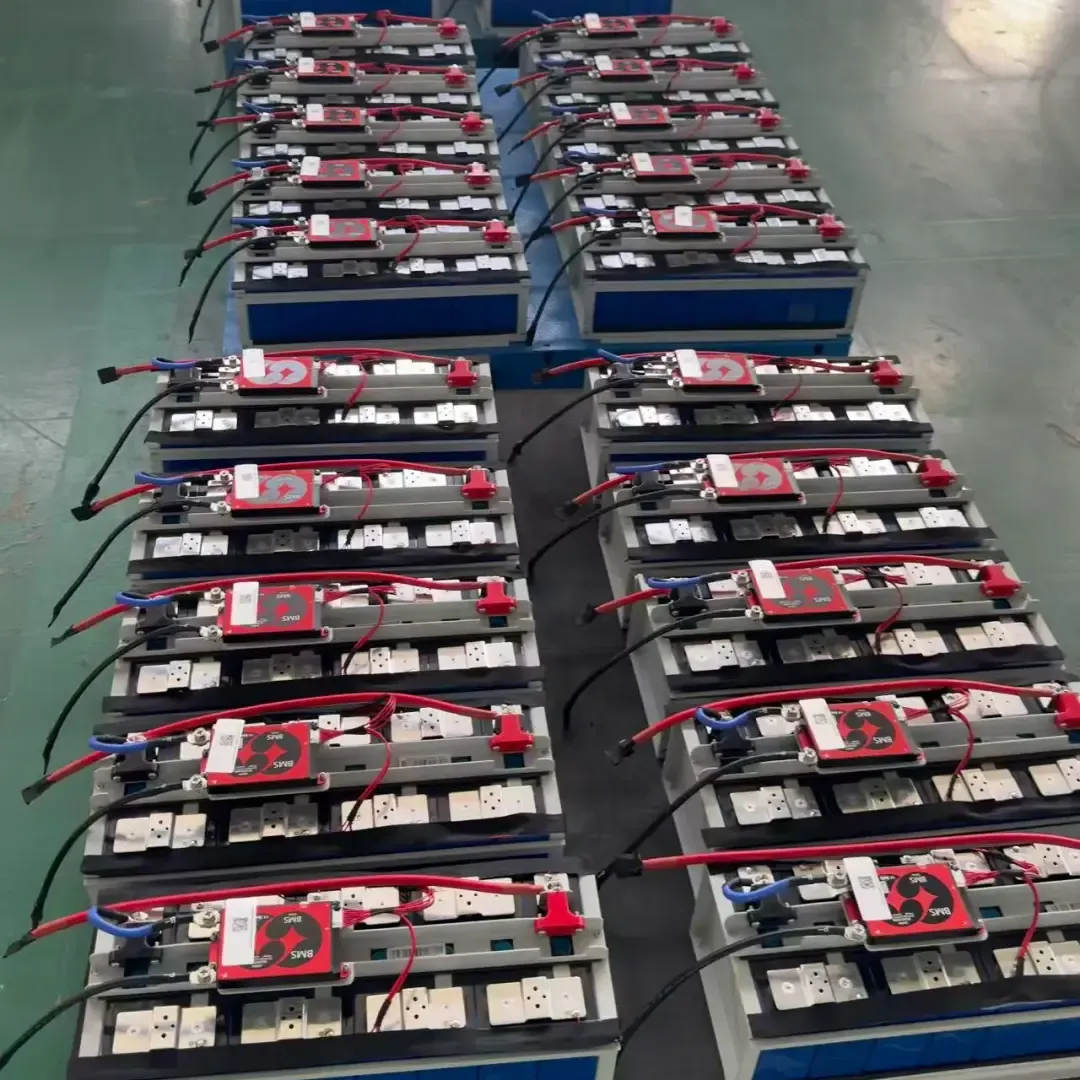

Battery Cell & BMS
LiFePO4 (LFP) cells paired with an intelligent battery management system. The BMS tracks system voltage, current, cell voltage, cell temperature and module temperature, calculates SOC with an intelligent algorithm, and draws below 2W in operation (below 100mW in sleep). Communication to the inverter runs over CAN/RS-485.
Key Advantages
A design life of over 10 years with more than 6000 charge/discharge cycles at 80%DOD gives the battery a long service life, while the 50kg slim wall-mounted housing keeps the footprint small. All-time monitoring by the smart BMS keeps every cell within its safe operating window.
Applications
Home solar energy storage for higher self-consumption, backup power during outages and lower electricity bills. The battery works as the DC storage side of a hybrid inverter system in houses, villas, apartments and small home offices.
Contact Us
Hefei Polynet Products Co., Ltd. — Polynet Solar Solutions
Email: sales1@polynetpv.com
Website: www.polynetpv.com
Frequently Asked Questions
How long does the battery last?
The battery is rated for more than 6000 cycles at 25℃±2℃ with 80%DOD and a design life of over 10 years, backed by a 5-year product warranty.
Is it compatible with my hybrid inverter?
The battery communicates over CAN/RS-485 and works with mainstream hybrid inverters. Confirm the communication protocol with your installer before ordering.
How much of the capacity is usable?
Of the 5120Wh nominal capacity, 4608Wh is usable. The smart BMS protects the cells and reports voltage, current and temperature in real time.
How is the battery installed?
It is a wall-mounted unit of 460*590*182.5mm and 50kg. Mount the bracket on a solid wall and connect the DC and communication cables — professional installation is recommended.
