Portable Wheeled 51.2v 280ah LiFePO4 Lithium Battery
51.2V 280Ah 14.34kWh Wheeled LiFePO4 Lithium Battery
51.2V 280Ah 14.34kWh wheeled LiFePO4 lithium battery (12902Wh usable, >6000 cycles, CAN/RS-485) for home solar energy storage and backup power.
Specifications
- Nominal Voltage
- 51.2V
- Nominal Capacity
- 14336Wh
- Usable Capacity
- 12902Wh
- Cycle Life
- >6000 cycles @80%DOD
- Dimension
- 560*916*265mm
- Weight
- 130kg
Product Description

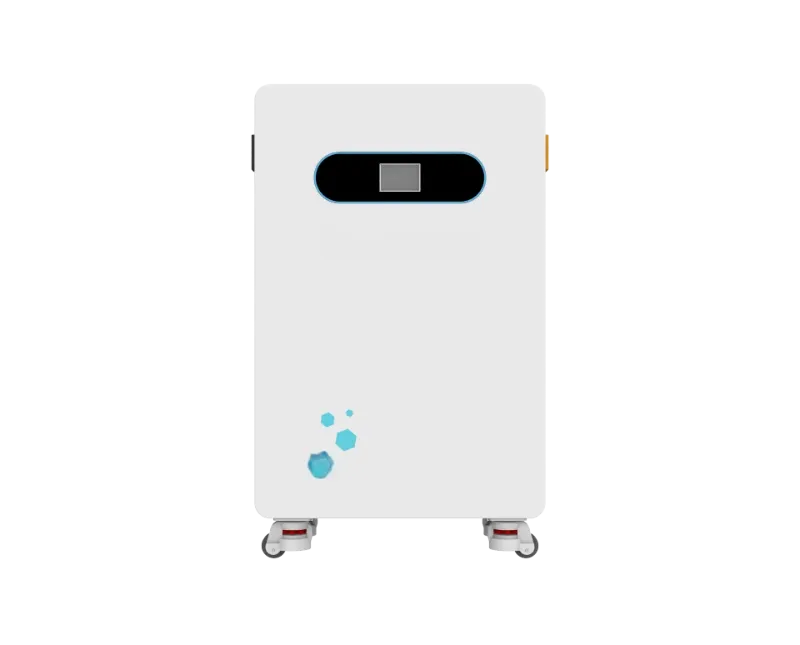

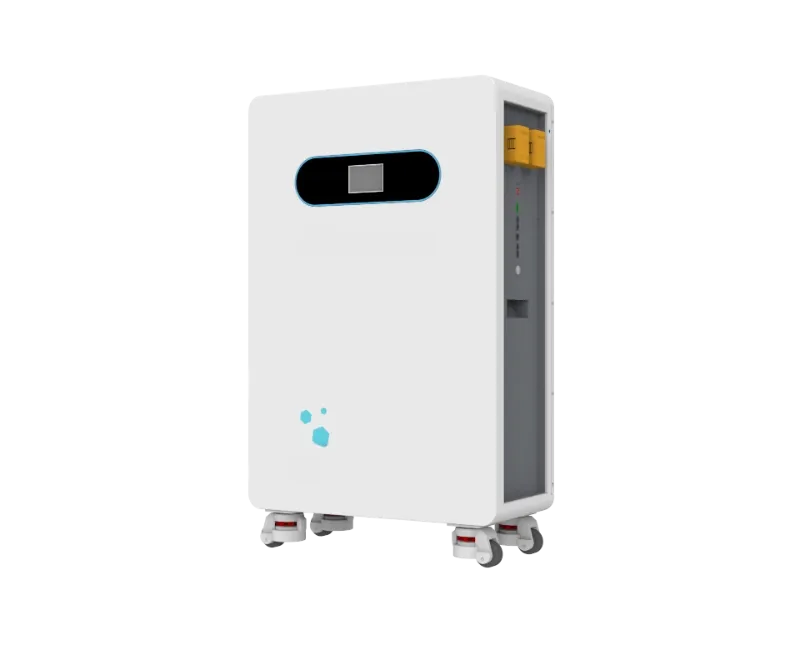

The 51.2V 280Ah LiFePO4 lithium battery is a wheeled 14.34kWh home energy storage unit from the home battery line of Polynet Solar Solutions (Hefei Polynet Products Co., Ltd.). Of its 14336Wh nominal capacity, 12902Wh is usable, and the built-in smart BMS handles monitoring and protection over CAN/RS-485. At 560*916*265mm and 130kg, the floor-standing housing rolls into position on casters, and the LiFePO4 (LFP) cells are rated for more than 6000 cycles at 80%DOD.
Product Features
Feature | Description |
High-Capacity 280Ah Cells | 14336Wh nominal and 12902Wh usable in one floor-standing unit — the largest capacity of the home battery line. |
Long Cycle Life | More than 6000 cycles at 25℃±2℃ with 80%DOD, and a design life of over 10 years. |
Built-in Smart BMS | Monitors system voltage, current, cell voltage and cell/module temperature, with SOC by intelligent algorithm. |
Inverter Compatibility | Communicates over CAN/RS-485 with mainstream hybrid inverters for home solar storage systems. |
Safe LFP Chemistry | LiFePO4 (LFP) cells for thermal stability and home safety, with all-time battery monitoring. |
Wheeled Floor-Standing Build | 560*916*265mm and 130kg on casters for easy positioning without lifting equipment. |
GENERAL | |
Battery Type | LiFePO4 (LFP) |
Nominal Voltage | 51.2V |
Nominal Capacity | 14336Wh |
Usable Capacity | 12902Wh |
Design Life | 10+ years (@25℃/77℉) |
PHYSICAL | |
Dimension | 560*916*265mm |
Weight | 130kg |
ELECTRICAL | |
Cycle Life | >6000 cycles @25℃±2℃, 80%DOD |
Discharge Voltage | 44.8V |
Charge Voltage | 57.6V |
Charge/Discharge Current | 140A (Recommended), 200A (Max) |
Internal Resistance | ≤30mΩ |
BMS | |
Power Consumption | <2W (Work), <100mW (Sleep) |
Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature |
SOC | Intelligent algorithm |
Communication | CAN/RS-485 |
OPERATION | |
Operating Temperature Range | Charge 0℃~50℃; Discharge -20℃~50℃ |
Transport or Storage Temperature Range | -10℃~35℃ |
Humidity | 15%~85% (No Condensing) |
WARRANTY | |
Product Warranty | 5 Years |
PAYMENT & DELIVERY | |
T/T — EXW / FOB | 30% T/T in advance, with the balance paid before shipment |
T/T — CFR(C&F) / CIF | 30% T/T in advance, with the balance paid against copy of B/L |
L/C | L/C at sight for amounts above 50,000 USD |
Western Union | For amounts lower than 5,000 USD |
Delivery Time | 7~20 days after receiving payment for one container |
Battery Cell & BMS
LiFePO4 (LFP) cells paired with an intelligent battery management system. The BMS tracks system voltage, current, cell voltage, cell temperature and module temperature, calculates SOC with an intelligent algorithm, and draws below 2W in operation (below 100mW in sleep). Communication to the inverter runs over CAN/RS-485.
Key Advantages
As the largest capacity of the home battery line, one 280Ah unit stores 12902Wh of usable energy — enough coverage for evening and overnight loads in larger homes. More than 6000 cycles at 80%DOD and a 10+ year design life keep the cost per stored kWh low.
Applications
Home solar energy storage for higher self-consumption, backup power during outages and lower electricity bills — sized for larger households with overnight air conditioning, heat pumps or EV charging at home.
Contact Us
Hefei Polynet Products Co., Ltd. — Polynet Solar Solutions
Email: sales1@polynetpv.com
Website: www.polynetpv.com
Frequently Asked Questions
How long does the battery last?
The battery is rated for more than 6000 cycles at 25℃±2℃ with 80%DOD and a design life of over 10 years, backed by a 5-year product warranty.
Is it compatible with my hybrid inverter?
The battery communicates over CAN/RS-485 and works with mainstream hybrid inverters. Confirm the communication protocol with your installer before ordering.
How much of the capacity is usable?
Of the 14336Wh nominal capacity, 12902Wh is usable. The smart BMS protects the cells and reports voltage, current and temperature in real time.
What charge and discharge currents does it support?
The recommended charge/discharge current is 140A with a 200A maximum, so the battery can follow fast charge and discharge demands from the hybrid inverter.
