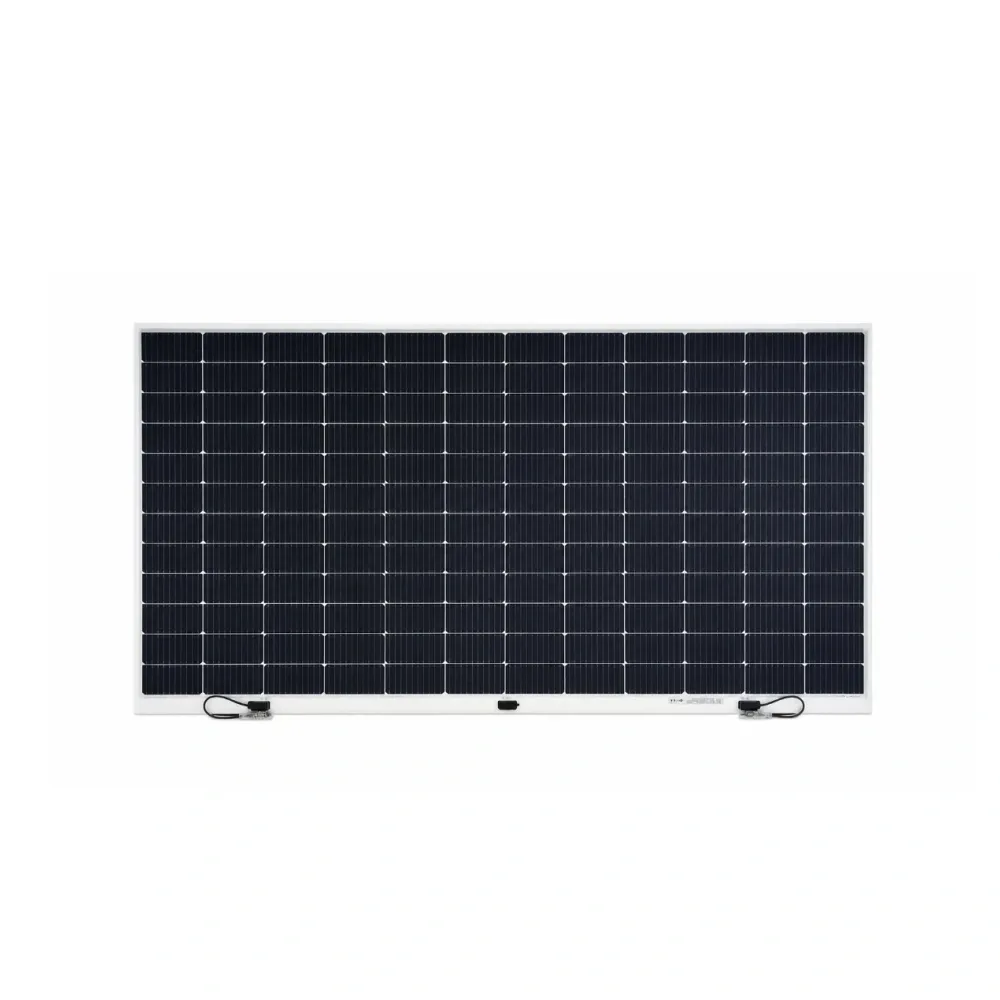

560W TopCon Flexible Solar Panel
High-Efficiency Lightweight Solar Module for Commercial & Industrial Projects
The Future of Lightweight Solar Energy
Our 560W TopCon Flexible Solar Panel combines high conversion efficiency, lightweight construction, and superior durability to maximize energy production while minimizing roof load.
Designed for industrial rooftops, commercial buildings, curved roofs, mobile applications, and custom solar projects, it delivers outstanding performance even in challenging environments.
Whether you are an EPC contractor, distributor, installer, or project developer, Polynet PV provides reliable OEM/ODM manufacturing with fast global delivery.
Why Choose Our 560W Flexible Solar Panel?
✓ High-Efficiency TopCon Cell Technology
✓ Lightweight Design
✓ Flexible Installation
✓ Low Roof Load
✓ Excellent Low-Light Performance
✓ PID Resistant
✓ Excellent Heat Dissipation
✓ Long Service Life
✓ 25-Year Performance Warranty
✓ OEM & ODM Available
✓ Global Certifications
✓ Fast Production & Delivery
Product Description

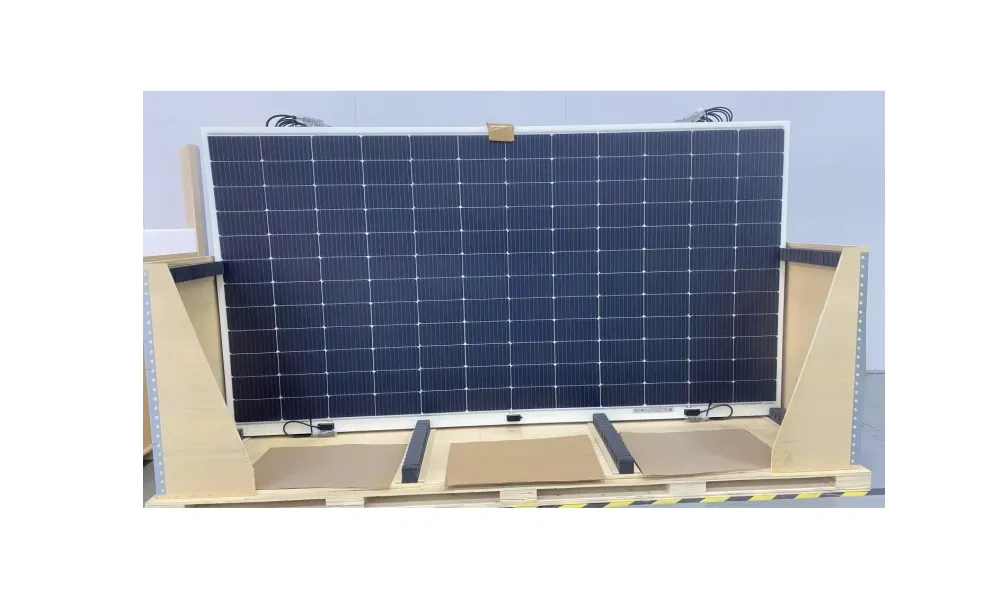

High-Efficiency Flexible Solar Module Built for Modern Projects
The 560W Flexible Solar Panel is engineered with advanced N-Type TopCon solar cells, delivering exceptional energy output while significantly reducing system weight.
Unlike conventional rigid glass modules, this flexible panel is ideal for applications where roof load, installation flexibility, or transportation efficiency are critical.
Its innovative design enables seamless integration into:
- Commercial rooftops
- Industrial buildings
- Curved metal roofs
- Sandwich panel roofs
- Mobile energy systems
- Off-grid power stations
- Agricultural facilities
- Temporary installations
With excellent temperature performance and enhanced durability, it ensures long-term reliability under extreme weather conditions.
Technical Specifications
Electrical Performance (STC)
Module Model Type | PNFN-555 | PNFN-560 | PNFN-575 |
Max-Power (PNPP) [W] | 555 W | 560 W | 575 W |
Power Tolerance [W] | 0 ~ +5 W | 0 ~ +5 W | 0 ~ +5 W |
Max-Power Voltage (VMPP) [V] | 45.25 V | 45.25 V | 45.43 V |
Max-Power Current (IMPP) [A] | 12.27 A | 12.37 A | 12.65 A |
Open-Circuit Voltage (Voc) [V] | 53.91 V | 53.65 V | 53.18 V |
Short-Circuit Current (Isc) [A] | 12.92 A | 12.96 A | 13.21 A |
Max. Series Fuse Rating [A] | 25 A | 25 A | 25 A |
Max. System Voltage [V] | 1360V DC (IEC) | ||
Electrical performance parameters (STC*) | |
Parameter | Technical Specification Details |
Solar Cell Type | N-Type Topcon Monocrystalline (182.2mm × 183.75mm) |
Physical Dimensions | 2240 × 1190 × 1.8 mm (±10% tolerance) |
Module Thickness | 1.8 mm Ultra-Thin (Excluding junction box profile) |
Areal Weight Efficiency | < 2.9 kg/m² (Highly optimized for low-load roof structures) |
Output Cables | 4mm² cross-section, standard 370mm length (Fully customizable upon request) |
Connector Type | MC4 Compatible robust solar connectors |
Junction Box | Tried & Certified IP68 Rating, completely sealed and weatherproof |
Backboard Color | Premium Architectural White (Optional Black available for customized orders) |
Operating Temperature Range | -40°C to +85°C |
Mechanical Load Capacity | Front Side: 3600Pa Max | Rear Side: 2400Pa Max |
Nominal Operating Cell Temp (NOCT) | 45°C ± 2°C |
| |
Temperature Coefficients | |
Parameter | Value |
Temperature Coefficient of PNPP | -0.28% / °C |
Temperature Coefficient of Voc | -0.26% / °C |
Temperature Coefficient of Isc | < 0.045% / °C |
Key Advantages
Lightweight Construction
Reduce structural load on rooftops.
Ideal for old buildings and lightweight roof structures.
High Conversion Efficiency
Advanced TopCon technology increases energy generation while lowering LCOE.
Flexible Installation
Perfect for:
Curved Roofs
Metal Roofs
Industrial Roofs
Warehouse Roofs
Temporary Structures
Vehicle Roof Systems
Better High Temperature Performance
Optimized temperature coefficient improves energy generation in hot climates.
Ideal for:
Middle East
Africa
Australia
Southeast Asia
Long-Term Reliability
Excellent resistance against:
PID
Salt Mist
Ammonia
UV Aging
High Humidity
Strong Wind
Heavy Snow
Typical Applications
Commercial Rooftop Solar
Reduce electricity costs while maximizing unused roof space.
Industrial Buildings
Large-scale factory rooftops
Warehouses
Manufacturing plants
Curved Roof Solar Projects
Specifically designed for curved metal roofs where conventional panels are unsuitable.
Agricultural Buildings
Barns
Greenhouses
Livestock Farms
Cold Storage
Mobile Energy Solutions
RV
Marine
Portable Power Systems
Container Power
OEM & ODM Manufacturing
Polynet PV provides complete customization services.
Available customization includes:
Panel Size
Power Output
Connector Type
Cable Length
Brand Logo
Packaging
Private Label
Project Solutions
Certifications
Our flexible solar panels comply with international quality standards.
✓ CE
✓ TUV
✓ IEC61215
✓ IEC61730
✓ ISO9001
✓ RoHS
✓...
Factory Strength
Professional Solar Module Manufacturer
Years of Manufacturing Experience
Advanced Automated Production Lines
Strict Quality Inspection
Large Production Capacity
Professional R&D Team
Fast Delivery Worldwide
Packaging & Shipping
Professional Export Packaging
Container Optimization
Worldwide Shipping
Technical Documentation
Installation Support
After-sales Service
OEM Packaging Available
FAQ ：
What is a flexible solar panel?
A flexible solar panel is a lightweight photovoltaic module designed to adapt to curved or low-load surfaces while maintaining high power generation efficiency.
Why choose TopCon technology?
TopCon solar cells offer higher efficiency, lower degradation, better low-light performance, and improved long-term energy yield compared with conventional PERC technology.
Where can flexible solar panels be installed?
They are widely used on:
- Curved metal roofs
- Industrial rooftops
- Sandwich panel roofs
- RVs
- Boats
- Mobile energy systems
- Agricultural buildings
- Temporary structures
Can you provide OEM services?
Yes.
We provide complete OEM and ODM manufacturing including customized dimensions, branding, packaging, connectors, and technical specifications.
What certifications do your products have?
Our products can be supplied with internationally recognized certifications such as TUV, CE, IEC, RoHS, UKCA, FCC, and ISO quality management compliance, depending on the project requirements.
What warranty do you offer?
- Product Warranty: Available according to product configuration
- Performance Warranty: Up to 25 Years
CTA：
Ready to Start Your Solar Project?
Looking for a reliable 560W Flexible Solar Panel Manufacturer?
Polynet PV provides:
- OEM & ODM Manufacturing
- Competitive Factory Pricing
- Fast Global Delivery
- Technical Engineering Support
- Customized Solar Solutions
- Professional Export Services
Contact our sales team today to receive your quotation, technical datasheet, and project proposal within 24 hours.
