Flexible Solar Panel
Custom TOPCon Flexible Solar Panels | Lightweight OEM Solar Modules
Custom TOPCon flexible solar panels, 200W to 535W standard platform, for RV, marine, balcony and off-grid B2B projects. Request a quote from Polynet.
Specifications
- Power Range
- 200W–535W standard flexible platform; other ratings per project
- Module Efficiency
- Up to 20.10% (PNM535M10, STC)
- Power Tolerance
- (0, +5 W) on PNM390~535M10 series
- Thickness
- From 2.14 mm (200 W model)
- Weight
- From 3.0 kg (200 W model)
- Junction Box
- IP67/68 certified
- Connector
- MC4-compatible
- Operating Temperature
- -40~+85°C (M10 flexible series)
Polynet Solar Solutions engineers custom TOPCon flexible solar panels for B2B customers — EPC contractors, solar distributors, system integrators, OEM brands and project developers — who need lightweight photovoltaics that integrate into a product, a vehicle, a vessel or a project site rather than sit on a standard roof rack.
Lightweight Solar Power Designed Around Your Application
Standard rigid modules force your design to fit the panel. Our flexible platform works the other way around: modules are engineered around the dimensions, curvature, voltage and power your product or project actually requires. The range spans a 3.0 kg, 200 W laminate for curved vehicle and vessel surfaces up to 535 W formats for larger off-grid arrays — a 200 W to 535 W standard flexible platform, with other power ratings, dimensions and voltages evaluated per project.
Why Choose Custom Flexible Solar Panels from Polynet?
Advanced high-efficiency cell technology. The standard flexible platform reaches module efficiencies up to 20.10% (PNM535M10, STC), built on high-efficiency monocrystalline cells in a thin, lightweight laminate.
Built for curved and irregular surfaces. Ultra-thin, flexible construction adapts to gently curved substrates — vehicle roofs, boat decks and arches, container and cabinet tops — without rails or ballast. The 200 W model measures just 2.14 mm in thickness with an ETFE front sheet.
Customized dimensions and electrical output. Length, width, cell layout, voltage and power are configured around your available mounting area and system requirements, within the practical limits of cell geometry and production processes.
Lightweight, low-profile installation. From 3.0 kg in the 200 W class to 9.0 kg in the 535 W class. No glass, no frame — the 200 W model installs rail-free using fastening eyelets or full-surface bonding, with no specialist personnel required.
Positive power tolerance. All models in the PNM390~535M10 flexible series are rated (0, +5 W): the modules you receive deliver at least nameplate power. Power tolerance for the PNM200 model is to be confirmed.
Designed for demanding outdoor projects. IP68 junction boxes (IP67/68 on the 200 W model), MC4-compatible connectors, an operating range of −40°C to +85°C on the M10 flexible series, and salt-mist test coverage (IEC 61701) stated on the 200 W model datasheet.
Product Applications
RVs, campervans and caravans — lightweight curved-roof charging that preserves payload, clearance and roof aesthetics.
Marine and boat systems — low-profile laminates for decks, cabin tops and arches, configured for humid, salt-laden environments.
Balcony solar solutions — lightweight modules supplied to balcony-PV assemblers and urban distribution partners for installations where roof access or load capacity is limited.
Off-grid power systems — array building blocks for telecom, water pumping, farms and remote facilities (see our Off-Grid & Remote Power Solutions page).
Solar lighting solutions — panels matched to charge controller, battery and luminaire duty cycles for standalone lighting.
Product-integrated photovoltaics — PV engineered into OEM equipment: cabinets, utility vehicles, sensors and mobile machinery.

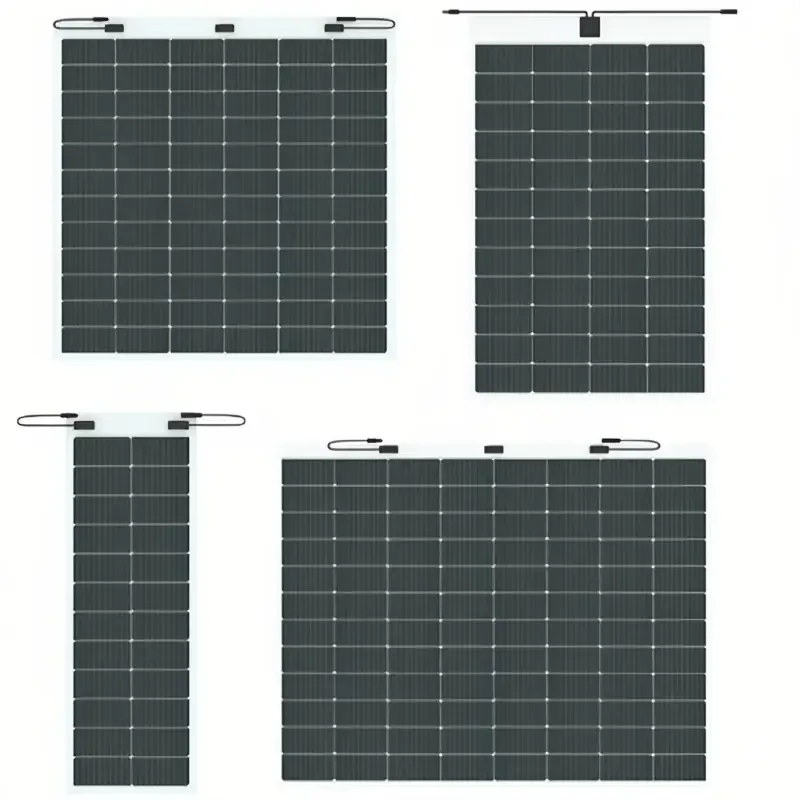

Available Standard Configurations
The following standard models are documented in our current official datasheets. Together they form a 200 W to 535 W standard flexible platform; other power ratings are evaluated per project.
Table 1 — Standard models (STC: 1000 W/m², 25°C, AM 1.5)

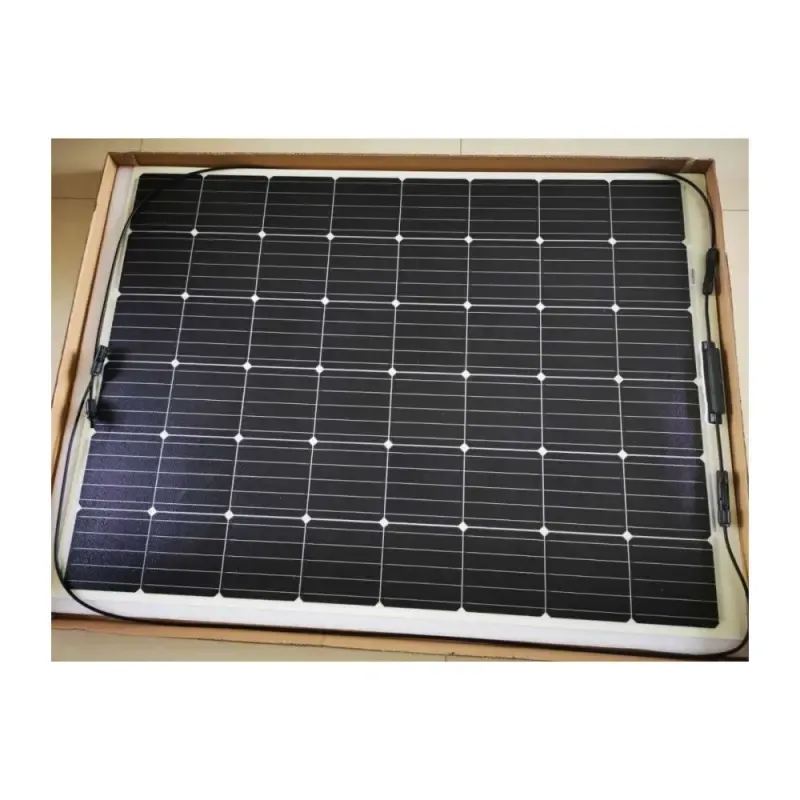

PNM200M10-48D3FB-Flex
Rated models: PNM200M10-48D3FB-Flex (200 W)
Pmax (STC): 200 W
Vmp: 18.31 V
Voc: 21.34 V
Dimensions (L×W×T): 1210 × 890 × 2.14 mm
Weight: 3.0 kg
Cell configuration: Back-contact cells, rail-free design, ETFE front
Module efficiency: Not stated on datasheet
PNM390~400M10
Rated models: PNM390M10 / PNM395M10 / PNM400M10
Pmax (STC): 390–400 W
Vmp: 30.78–31.18 V
Voc: 36.64–37.04 V
Dimensions (L×W×T): 2246 × 927 × 2.6 mm
Weight: 6.8 kg
Cell configuration: Monocrystalline 182×91 mm, 12×9 layout
Module efficiency: 18.73–19.21%
PNM430~445M10
Rated models: PNM430M10 / PNM435M10 / PNM440M10 / PNM445M10
Pmax (STC): 430–445 W
Vmp: 33.50–34.10 V
Voc: 40.60–41.20 V
Dimensions (L×W×T): 2246 × 1020 × 2.6 mm
Weight: 7.6 kg
Cell configuration: Monocrystalline 182×91 mm, 12×10 layout
Module efficiency: 18.77–19.42%
PNM465~485M10
Rated models: PNM465M10 / PNM470M10 / PNM475M10 / PNM480M10 / PNM485M10
Pmax (STC): 465–485 W
Vmp: 37.27–37.95 V
Voc: 44.56–45.16 V
Dimensions (L×W×T): 2246 × 1092 × 2.5 mm
Weight: 7.4 kg
Cell configuration: Monocrystalline 182×91 mm, 12×11 layout
Module efficiency: 18.96–19.77%
PNM520~535M10
Rated models: PNM520M10 / PNM525M10 / PNM530M10 / PNM535M10
Pmax (STC): 520–535 W
Vmp: 41.03–41.57 V
Voc: 48.94–49.39 V
Dimensions (L×W×T): 2246 × 1185 × 2.6 mm
Weight: 9.0 kg
Cell configuration: Monocrystalline 182×91 mm, 12×12 layout
Module efficiency: 19.54–20.10%
Note: the 7.4 kg weight of the PNM465~485M10 series is lower than the 7.6 kg of the PNM430~445M10 series; both values are as stated on the respective series datasheets.
Table 2 — Platform electrical and mechanical data
PNM200M10-48D3FB-Flex — key data
Imp / Isc: 10.92 A / 11.55 A
Power tolerance: To be confirmed
Max. system voltage: To be confirmed — datasheet states 100 VDC in the electrical table and DC1000 V in the operating-conditions section
Max. series fuse rating: Not stated on datasheet
Junction box: IP67/68 certified
Connector: MC4-compatible
Output cables: Per project
Encapsulant / backsheet: EVA / SG-BS backsheet
Operating temperature: −20°C to +65°C
Temperature coefficients: Not stated
Warranty: First-year degradation below 2.5%; 85% of output at year 25
Tests & certification: IEC 61215 Ed.2, IEC 61730, IEC 61701; RoHS lead-free; TÜV SÜD, CE, ISO marks on datasheet
PNM390~535M10 series — key data
Imp / Isc: See series datasheets (Imp 12.50–13.06 A; Isc 13.25–13.83 A)
Power tolerance: (0, +5 W)
Max. system voltage: DC 1500 V (IEC)
Max. series fuse rating: 25 A
Junction box: IP68
Connector: MC4-compatible
Output cables: 4.0 mm², 400 mm (+) / 400 mm (−); length customizable
Encapsulant / backsheet: Not stated on series datasheets
Operating temperature: −40°C to +85°C
Temperature coefficients: Pmax −0.370%/°C · Voc −0.280%/°C · Isc +0.050%/°C · NMOT 45±2°C
Warranty: 12 years materials & workmanship; 25-year linear output guarantee at 84.8%
Tests & certification: TÜV SÜD and CE marks on datasheet
Note: the maximum system voltage of the PNM200M10-48D3FB-Flex is shown as 100 VDC in one section of its datasheet and DC1000 V in another; the figure will be confirmed before it is published as a single value.
Note: the PNM200 datasheet carries two conflicting temperature-range entries; −20~+65°C shown per the Operating Conditions section, confirmation requested.
Customization Options
Module dimensions and shape. Length and width configured within cell-lattice limits; cutouts, corner radii and eyelet positions per your drawing.
Electrical configuration. Voltage set through cell arrangement, power through active area; output cable length customizable (4.0 mm², 400 mm positive/negative as standard on the M10 flexible series); MC4-compatible or project-specific connectors.
Surface and appearance. ETFE front sheet on the 200 W model; backsheet and branding options for OEM projects. Front surface material for the M10 series is not stated on the datasheets; confirmed per project.
Installation options. Rail-free fixing with fastening eyelets (bolt-through or laced) or full-surface adhesive bonding. Please note the warranty condition stated on the 200 W model datasheet: panels must be fixed to all provided fastening eyelets or glued over the entire surface, and sustained vibration may limit warranty coverage.

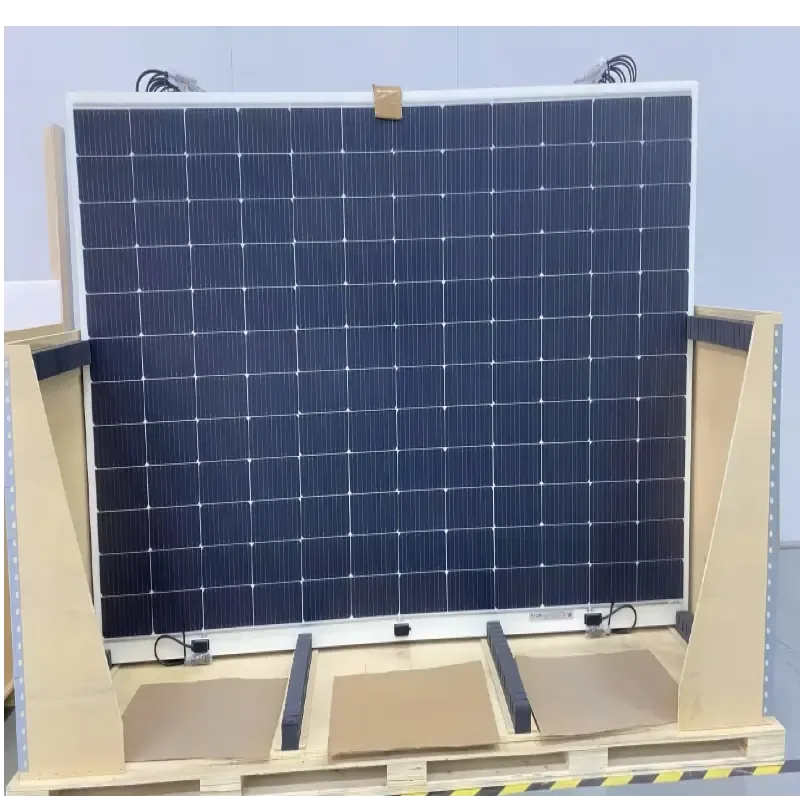

OEM and packaging services. Private-label branding, custom retail and export packaging; series datasheets list wooden-box export packing (e.g., 70 pcs per box, 20 boxes per 40'HQ container for PNM390~485M10; 700 pcs per 40'HQ for PNM520~535M10).
Our Customization Process
1. Send your requirements. Outline drawing or dimensions, target power and voltage, system/battery voltage, quantity, mounting surface and operating environment.
2. Engineering evaluation. We assess feasibility against cell geometry and production limits, then return an electrical proposal with datasheet-level specifications.
3. Sample confirmation. A sample is built for your review and sign-off before series production.

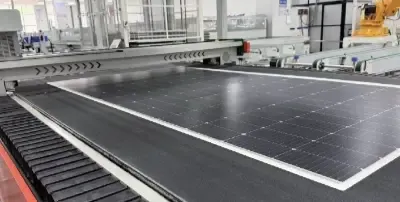

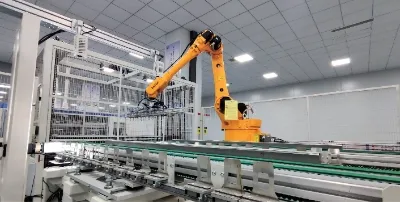

4. Series production. Production organized and quality-controlled by Polynet against the confirmed specification.
5. Delivery and project support. Export packing, shipping documents and continued engineering support through installation.
About Polynet Solar Solutions
Polynet Solar Solutions is the solar business line of Hefei Polynet Products Co., Ltd., specializing in customized solar panels and integrated solar energy solutions for global B2B customers. We act as a solution provider and supply chain partner for distributors, EPC contractors, system integrators, OEM brands and project developers:
Customization — custom PV modules engineered to your dimensions, electrical requirements and mounting method.
System integration — controller, battery and BOM-level matching so the module works inside your complete system.
Supply chain consolidation — one partner coordinating modules, system components and export logistics.
Project support — engineering review, documentation and phased delivery for multi-stage projects.
Contact: sales1@polynetpv.com · www.polynetpv.com
Frequently Asked Questions
1. Can I order flexible solar panels in custom sizes?
Yes. Length, width, cell layout, power and output voltage are configured against your available mounting area, subject to cell dimensions and production requirements. Send your outline drawing and target specifications for an engineering evaluation.
2. Can the panels follow curved surfaces?
Yes — the laminates are designed for gently curved and irregular surfaces. They must not be folded or creased, and the minimum bending radius is confirmed for each construction during engineering review before mass production.
3. Can you match the panels to my battery and charge controller?
Yes. Provide the battery chemistry, nominal system voltage, charging voltage window and the controller's input limits; we propose the cell arrangement and module voltage so the array sits correctly inside the MPPT operating window.
4. Are they suitable for RV and marine use?
Yes, they are configurable for both. Final materials, sealing, connectors and mounting should match the expected exposure to water, salt, vibration, heat and UV. Note the 200 W model datasheet warranty condition: panels must be fixed to all provided fastening eyelets or glued over the entire surface, and sustained vibration may limit warranty coverage.
5. How are the panels mounted?
Rail-free installation with the provided fastening eyelets (bolt-through or laced) or full-surface adhesive bonding. Adhesive specification is recommended per substrate and project.
6. What certifications do the modules carry?
The 200 W model datasheet lists testing to IEC 61215 Ed.2, IEC 61730 and IEC 61701 (salt mist), with RoHS lead-free compliance and TÜV SÜD, CE and ISO marks shown on the datasheet. The higher-power series datasheets carry TÜV SÜD and CE marks. Project-specific certificate requirements should be raised during quotation.
7. What warranty applies?
The 200 W model carries a first-year degradation below 2.5% and 85% output at year 25. The PNM390~535M10 flexible series carries 12 years of materials-and-workmanship cover and a 25-year linear output guarantee at 84.8%.
8. What information do you need for a quotation?
Dimensions or outline drawing, target power, system/battery voltage, quantity, surface curvature, cable and connector requirements, mounting method, operating environment and any certification requirements.
Need a Solar Panel That Fits Your Product or Project?
Send your outline drawing, target wattage, system voltage, application and quantity. Our engineers will come back with a feasibility assessment and a quotation, including OEM/ODM support for custom projects.
