Heavy-Duty Side Pole Solar Mounting Bracket | 10w-150w Adjustable AL6005 Aluminum Panel Mount
Premium AL6005 aluminum side pole solar mount for off-grid PV systems, street lights & CCTV. Heavy-duty, weather-resistant, and easy 4-step installation. Buy wholesale!
Reliable Solar Mounting Solution for Outdoor Applications

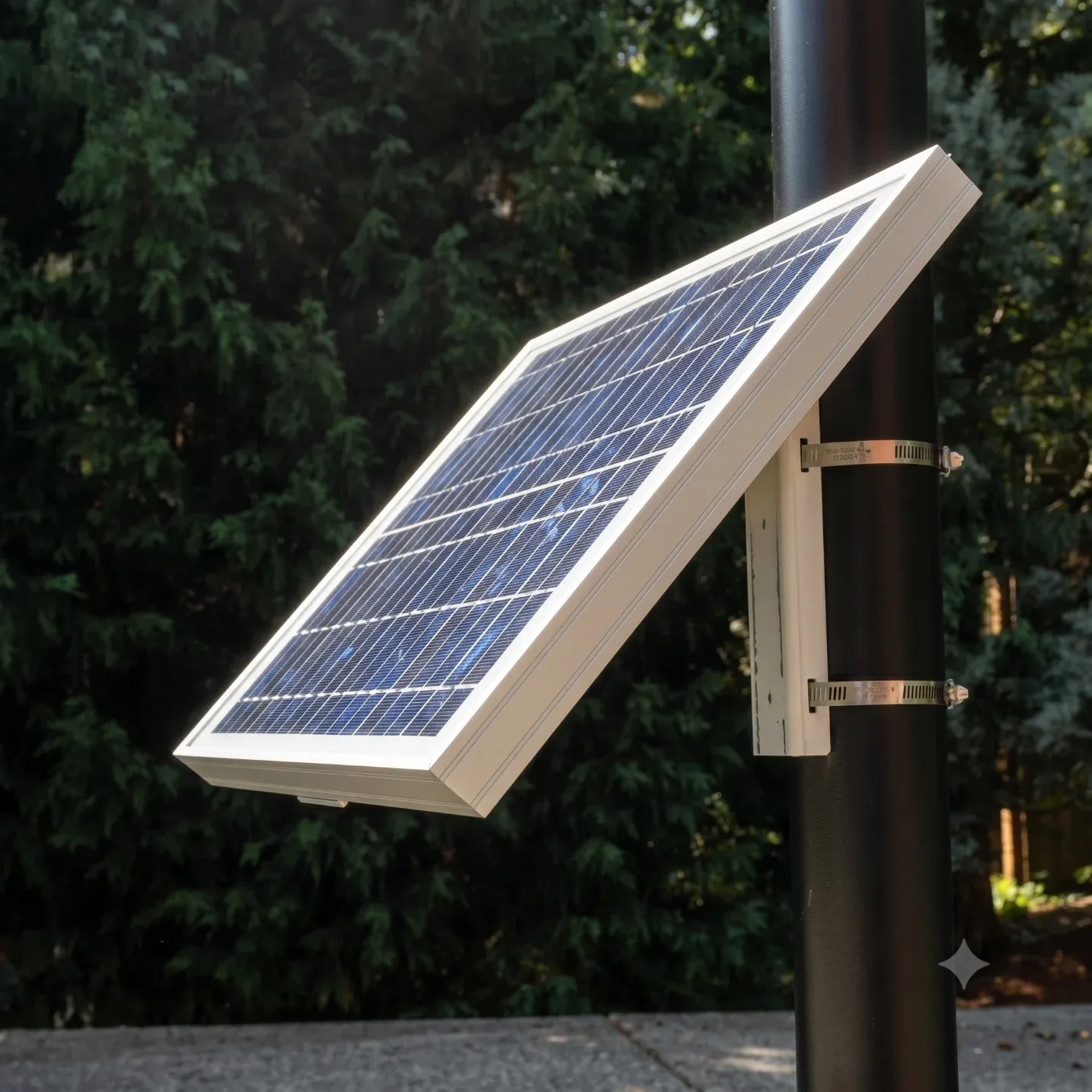

The Solar Mounting Bracket is designed for secure and durable solar panel installation on poles, walls, and outdoor structures.
This side pole solar mounting system is widely used for:
- Solar Street Lights
- CCTV Solar Systems
- Telecom Base Stations
- Remote Off-grid Solar Systems
- RV & Marine Solar Applications
- Traffic Monitoring Systems
Manufactured with high-strength AL6005 aluminum alloy and SUS304 stainless steel accessories, the bracket offers excellent corrosion resistance, lightweight structure, and long service life for outdoor environments.
Technical Specifications
Item | Specification |
|---|---|
Product Name | Solar Mounting Bracket |
Installation Type | Side Pole Mount |
Material | AL6005 Aluminum Alloy |
Fastener Material | SUS304 Stainless Steel |
Surface Treatment | Anodized / Anti-corrosion |
Application | Outdoor Solar Installation |
Compatible Panel Size | 10w-150w (or Customizable) |
Installation Pole | Round Steel Pole |
Wind Resistance | High |
Corrosion Resistance | Excellent |
OEM/ODM | Supported |
Heavy-Duty Side Pole Solar Mounting Bracket | Adjustable Aluminum Support System
Maximize your solar efficiency with our Premium Side Pole Solar Mounting Bracket. Engineered for ultimate durability and flexibility, this rigid mounting system is specifically designed to securely anchor solar panels to vertical poles. Whether you are powering a solar street light, setting up a remote CCTV surveillance system, or deploying an off-grid telecom base station, this bracket provides the rock-solid stability your project demands.
🛠️ Premium Material & Robust Specifications
We never compromise on material quality. This solar pole mount is manufactured from industrial-grade materials to ensure a service life of over 25 years in harsh outdoor environments.

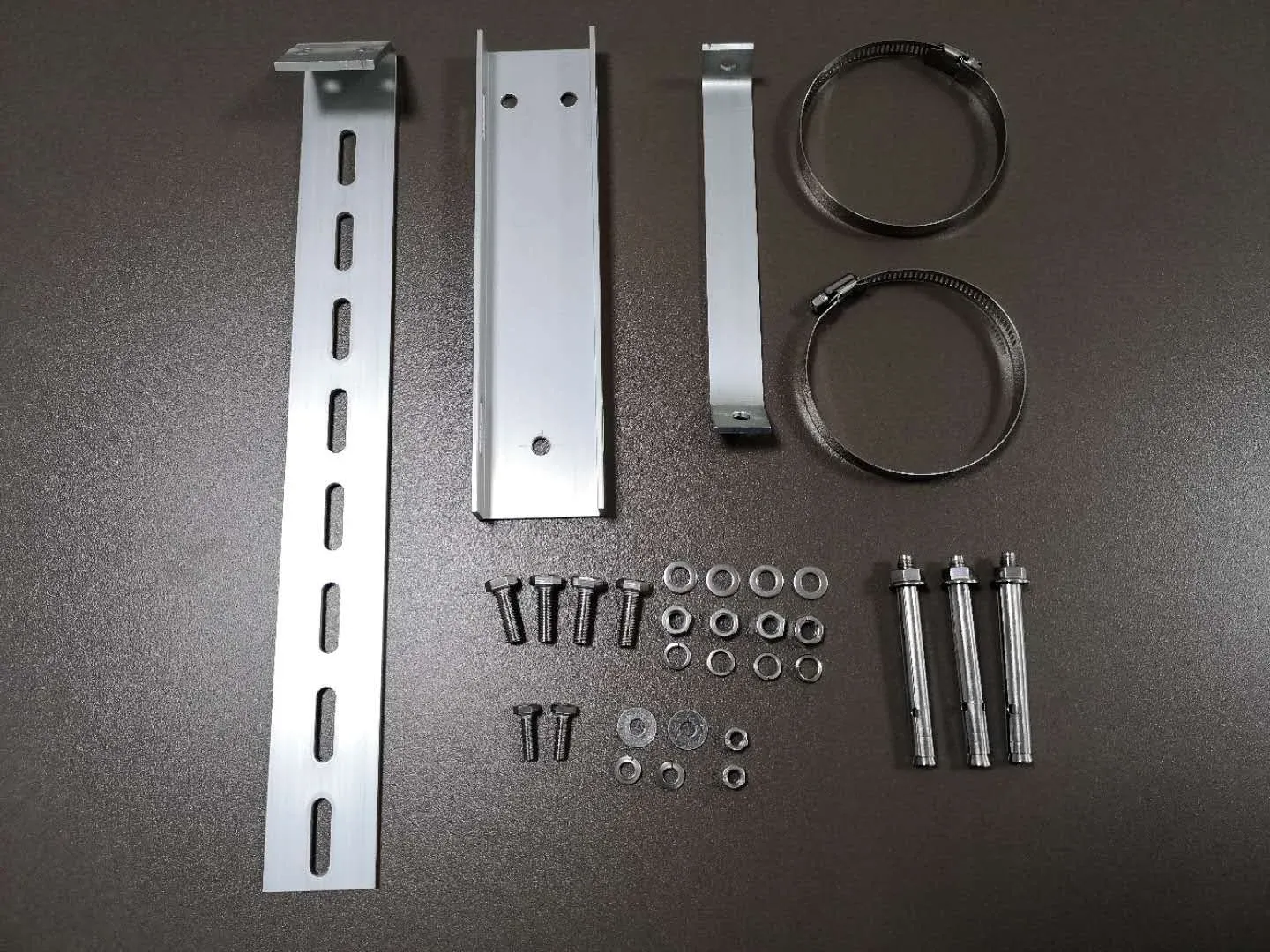

No. | Description / Part Name | Material Grade | Key Feature |
1 | Main Vertical Support Channel | AL6005-T5 Aluminum | Lightweight, high strength, anodized anti-corrosion finish. |

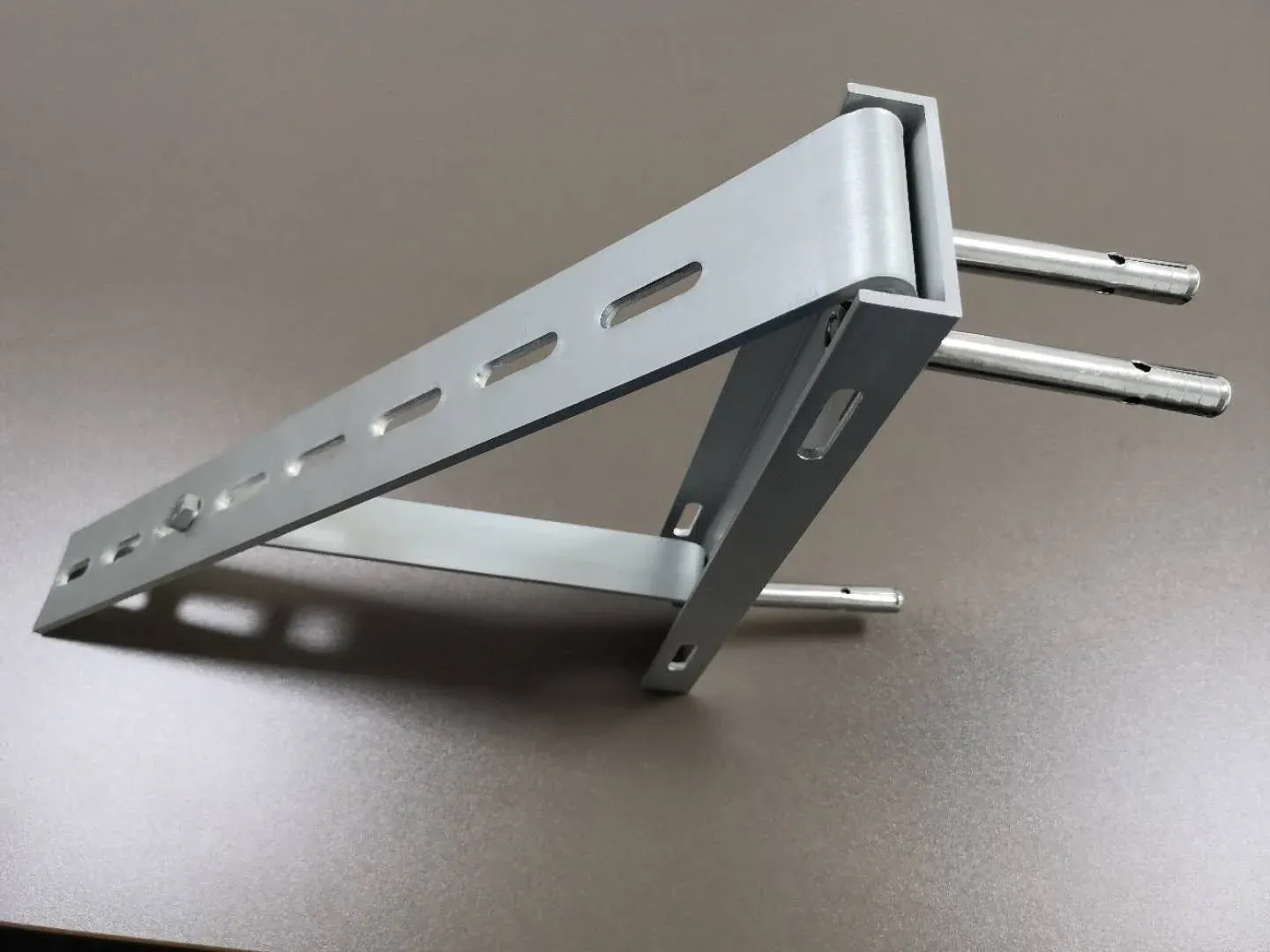

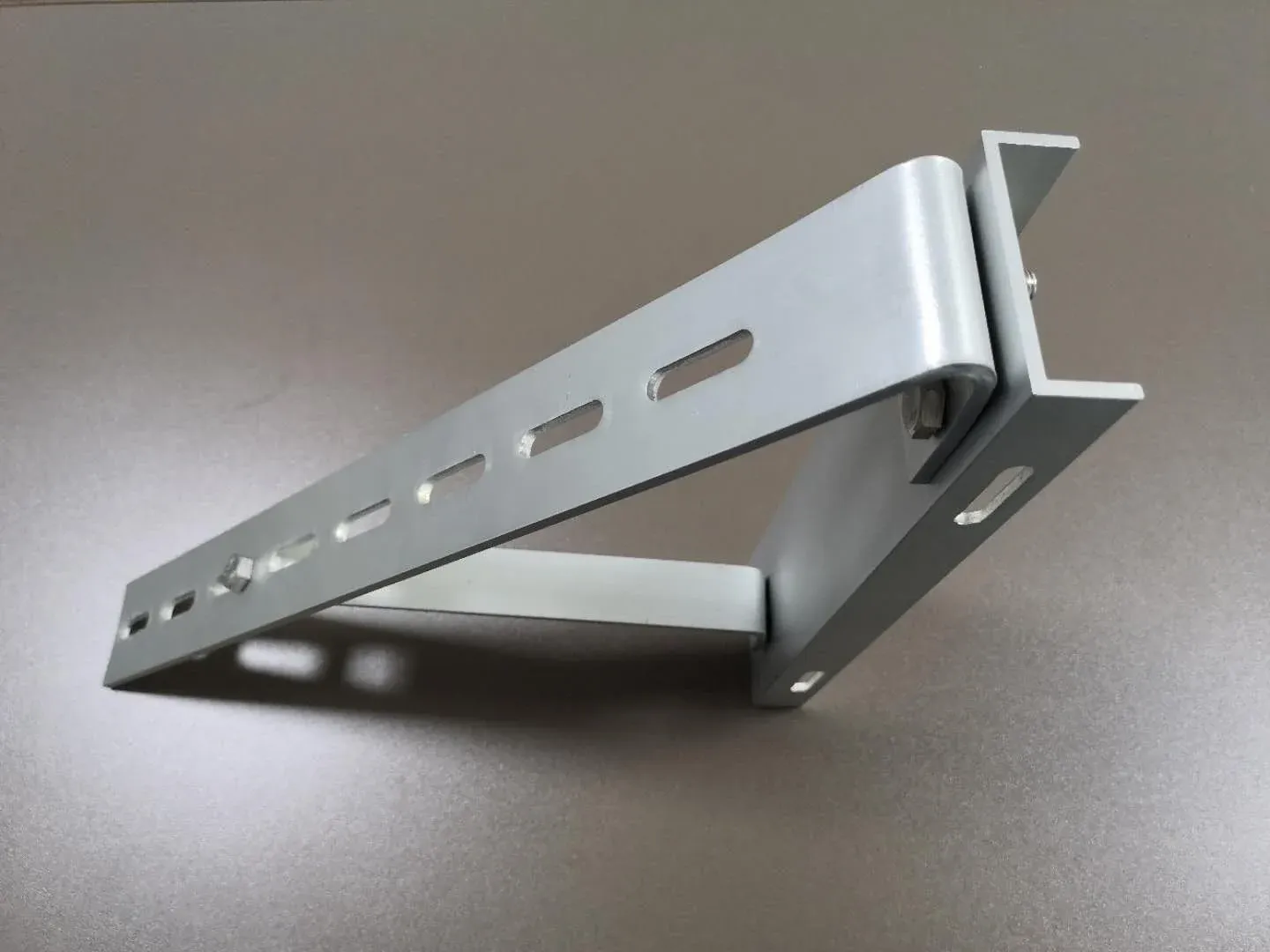

2 | Adjustable Tilt Angle Bracket | AL6005-T5 Aluminum | Multi-hole design for precise seasonal tilt adjustment. |
3 | Lower Stabilizer / Support Rod | AL6005-T5 Aluminum | Reinforces wind resistance and balances structural load. |
4 | Structural Fasteners (Bolts/Nuts) | SUS304 Stainless Steel | Rust-proof, high tensile strength, heavy-duty locking. |
5 | Adjustable Pole Hose Clamps | SUS304 Stainless Steel | Fits variable pole diameters; provides high gripping force. |
🎯 Key Features & Commercial Benefits
- Exceptional Corrosion Resistance (AL6005 & SUS304): The anodized AL6005 aluminum alloy structure combined with SUS304 stainless steel hardware guarantees maximum resistance against coastal salt spray, high humidity, and desert heat.
- Flexible Adjustable Tilt Angle: Optimize your solar harvesting year-round. The multiple pre-drilled positioning slots allow installers to easily adjust the tilt angle to catch maximum peak sunlight.
- Universal Compatibility: Engineered to fit a wide range of small-to-medium residential and industrial solar panel frames.
- Heavy Wind & Snow Load Rated: High-tensile structural integrity ensures your solar array remains firmly attached even under extreme weather conditions.

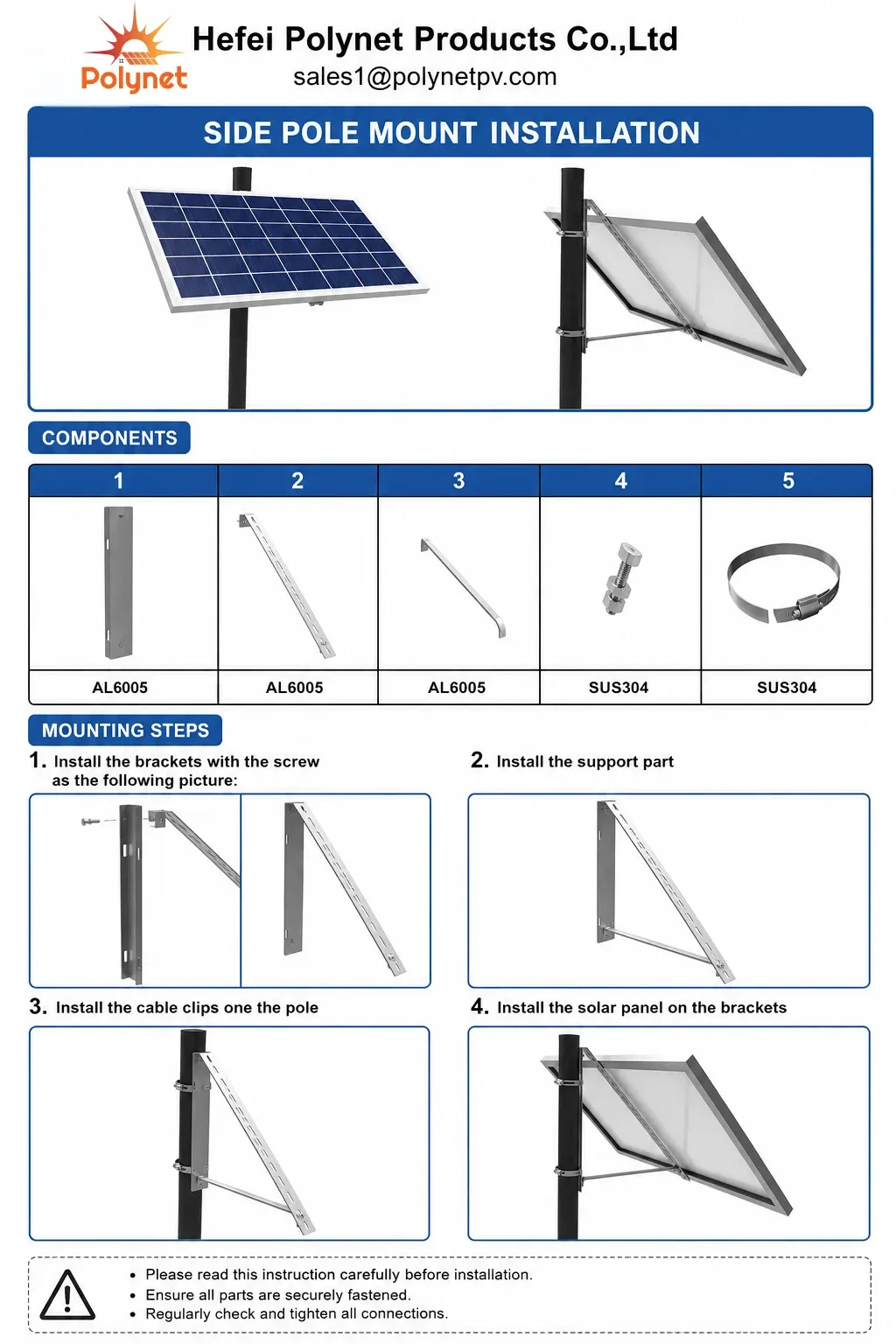

📐 Step-by-Step Installation Guide (4 Easy Steps)
Our side pole solar mount features an intuitive, hassle-free mechanical design. You can complete the full installation in just 4 simple steps without specialized heavy machinery:
🏢 Versatile Industrial Applications
This adjustable solar pole bracket is the preferred choice for EPC contractors and international distributors across multiple industries:
- Solar Smart Street Lighting: Perfect for municipal and rural highway lighting infrastructure.
- Security & Surveillance: Powers off-grid remote CCTV cameras and wireless sensor stations.
- Telecommunications: Holds PV panels for remote signal boosters and IoT edge gateways.
- Agricultural Automation: Provides reliable power setups for automated solar irrigation pumps and weather stations.
- Small Off-grid Solar Systems:Perfect for cabins, villages, islands, and remote locations.
Recommended Applications by Region
Region | Recommended Feature |
|---|---|
Middle East | High corrosion resistance |
Europe | Adjustable angle design |
Africa | Easy installation structure |
Australia | Heavy wind resistance |
Southeast Asia | Lightweight mounting system |
❓ Frequently Asked Questions:
Q1: What material is used for the solar bracket?
The bracket uses high-strength AL6005 aluminum alloy with SUS304 stainless steel fasteners.
Q2: Is the bracket suitable for outdoor environments?
Yes. The bracket is specially designed for outdoor solar applications and offers excellent corrosion resistance.
Q3: Can the installation angle be adjusted?
Yes. Adjustable versions are available to optimize solar panel efficiency.
Q4: What applications is this bracket suitable for?
Suitable for solar street lights, CCTV systems, telecom stations, off-grid solar systems, and more.
Q5: Do you support OEM customization?
Yes. We support OEM and ODM customization for dimensions, materials, and packaging.
Q6: What diameter of pole does this side pole mount support?
Thanks to the flexible, adjustable design of our SUS304 stainless steel hose clamps, this bracket can be customized to fit a wide range of pole diameters (typically from 2 inches up to 6 inches). For custom large-diameter projects, please contact our engineering sales team.
Q7: Why is AL6005 aluminum preferred over galvanized steel?
AL6005-T5 aluminum is significantly lighter than traditional steel, making high-pole installations safer and easier for technicians. Additionally, it offers superior natural corrosion resistance without the risk of zinc coating flaking off over time.
Q8: Can this bracket withstand heavy storm conditions?
Yes. The triangular geometric design paired with premium AL6005 aluminum and high-tensile SUS304 fasteners provides exceptional structural rigidity, making it capable of handling high wind loads typical of open outdoor areas.
