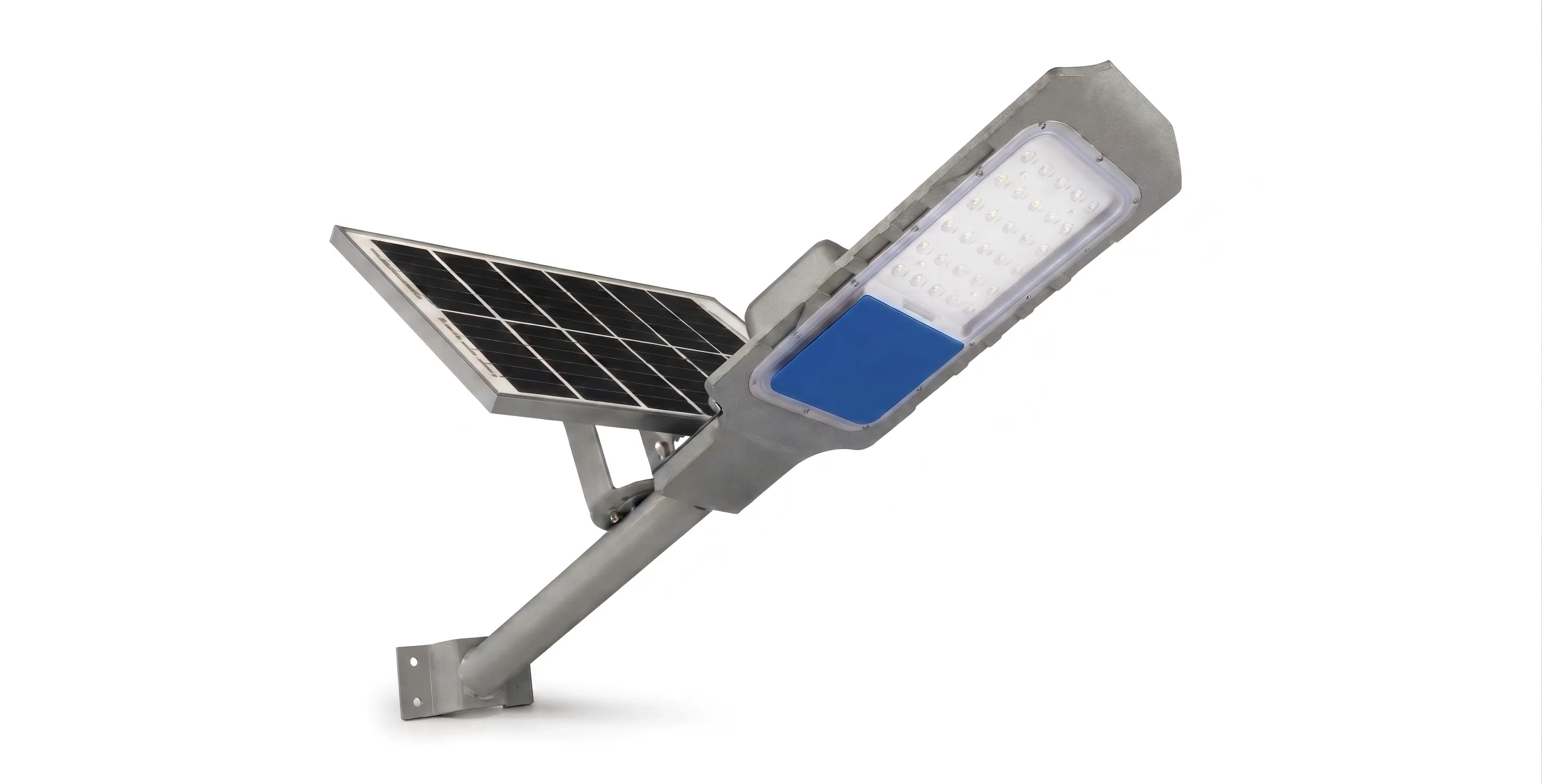

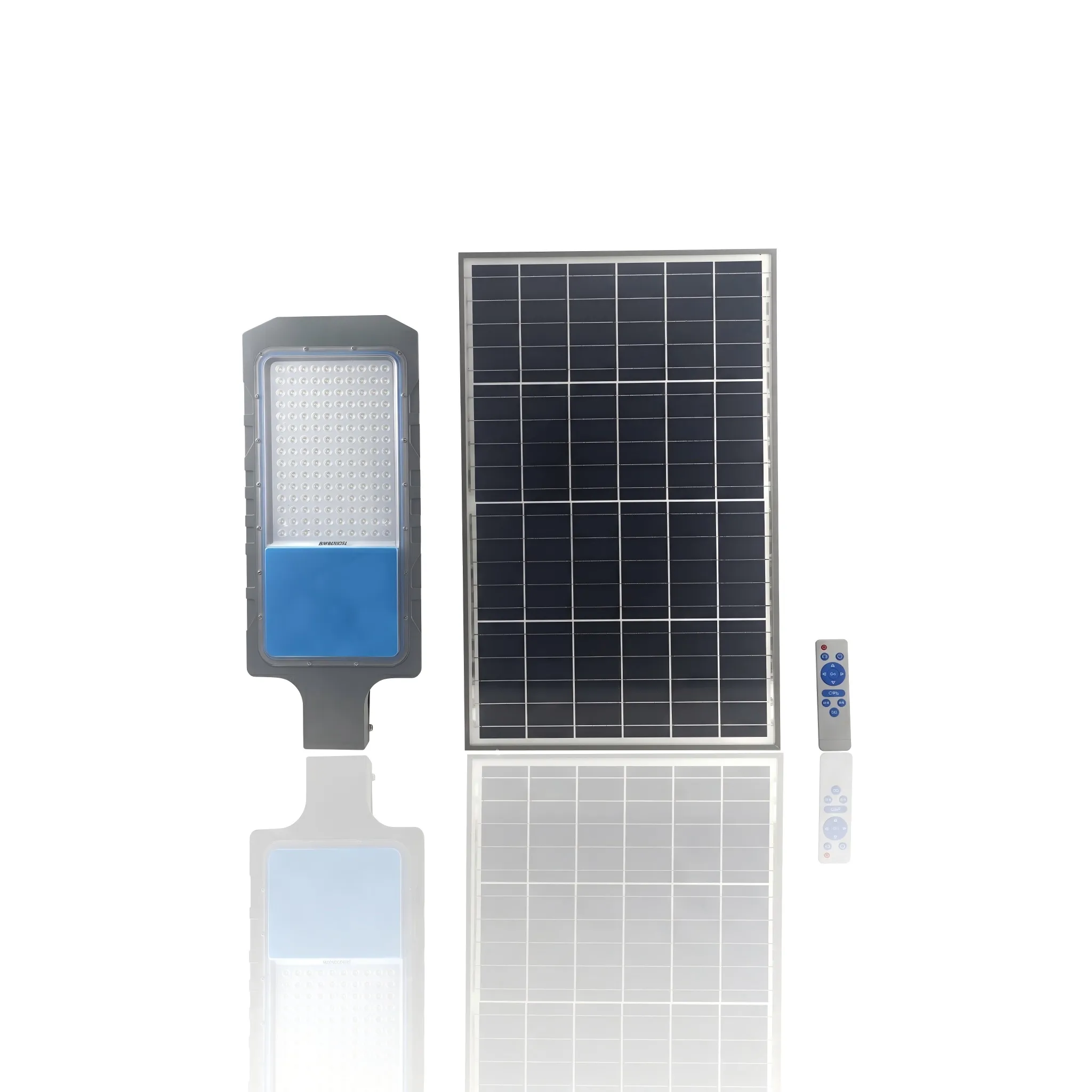

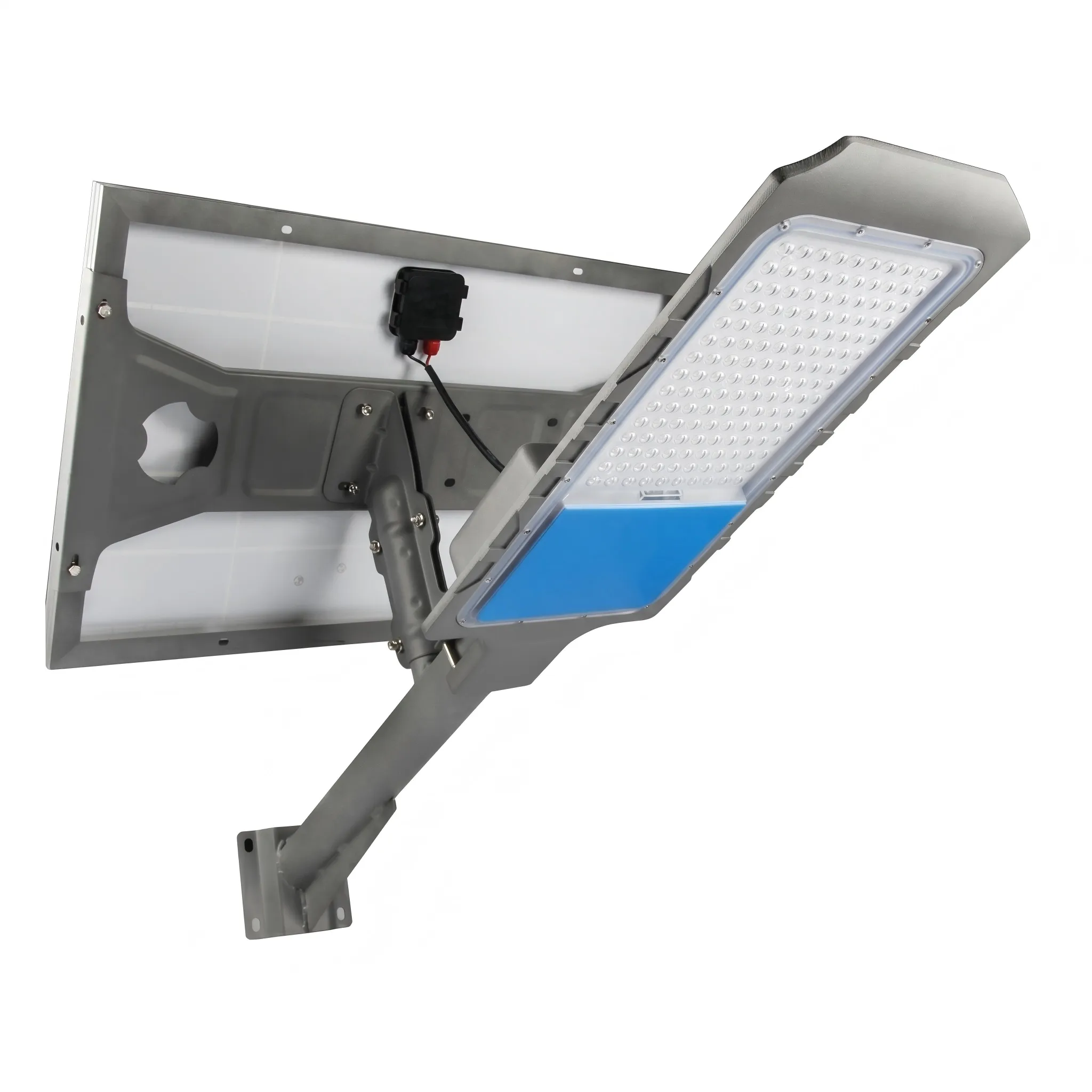

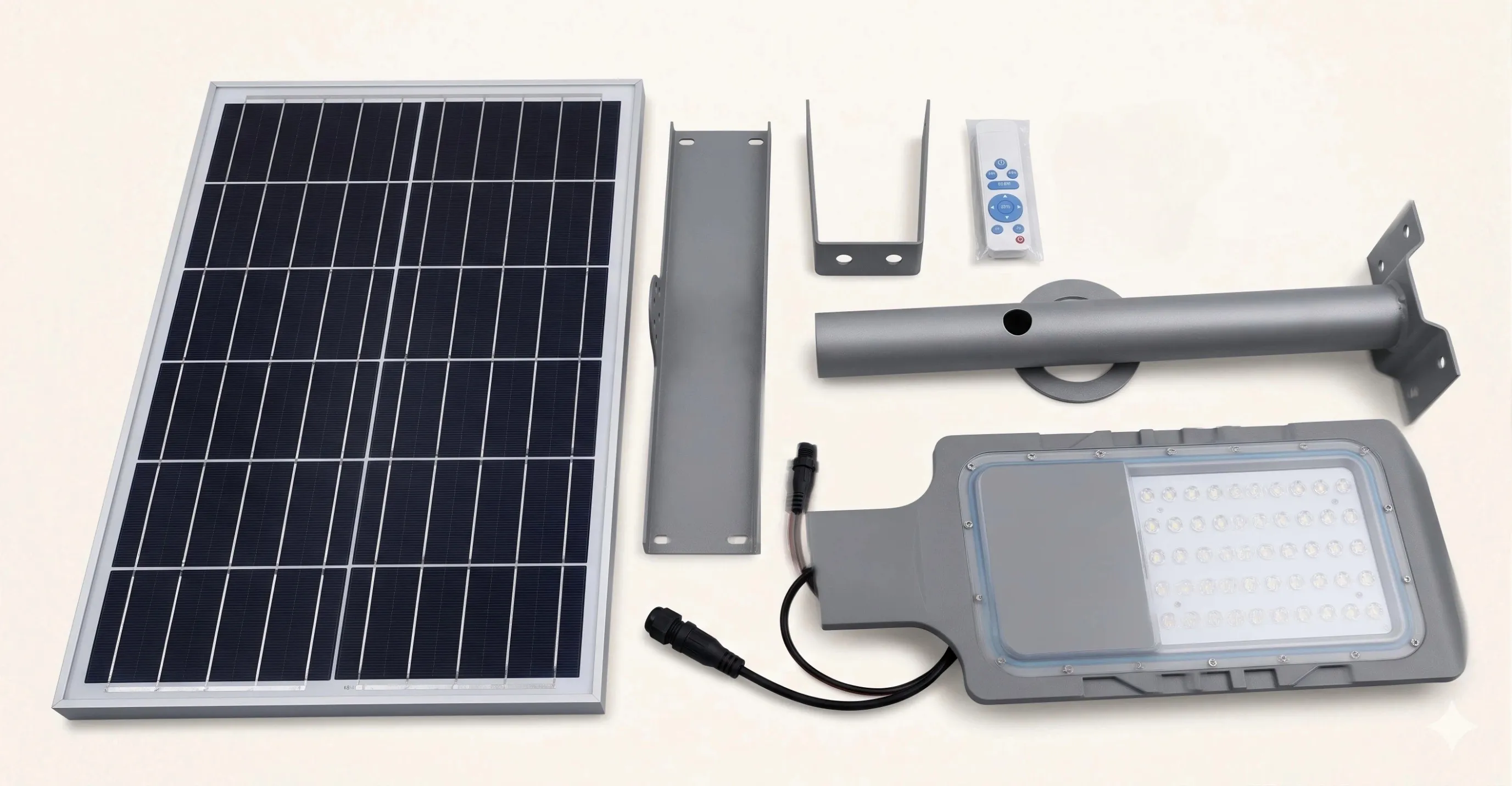

Solar Panel Street Lamp
Model | PN-16B0F-50W | PN-16B0F-100W | PN-16B0F-200W | PN-16B0F-300W |
LEDs | SMD3030 60pcs | SMD3030 100pcs | SMD3030 208pcs | SMD3030 300pcs |
Battery | 3.2V/12Ah | 3.2V/18Ah | 3.2V/24Ah | 3.2V/36Ah |
Solar Panel | 6V/20W | 6V/25W | 6V/30W | 6V/40W |
Panel Size (mm) | 350*460 | 350*520 | 350*630 | 670*460 |
Body Size (mm) | 440*180 | 490*200 | 540*220 | 540*220 |

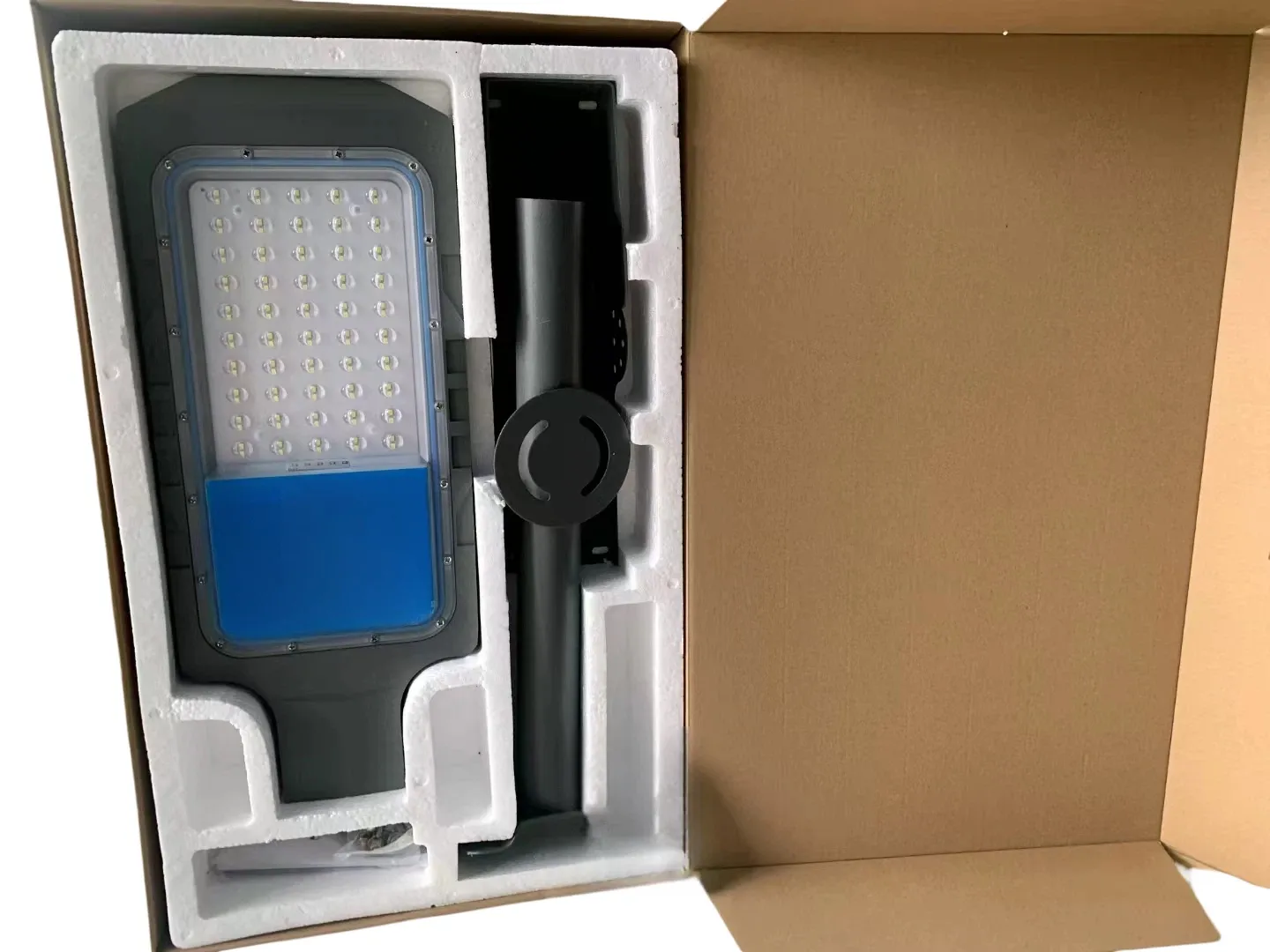

Packing size (mm) | 640*510*398 | 640*510*398 | 790*478*458 | 790*478*458 |
QTY/CTN | 4pcs | 4pcs | 3pcs | 3pcs |
N.W/CTN (KG) | 15.84 | 18 | 24 | 29.4 |
G.W/CTN (KG) | 17.2 | 19.7 | 25.8 | 31.5 |
Feature | Value |
Material | Aluminum |
Solar Panel | A Grade Monocrystalline Silicon with high efficiency |
Battery | A Grade Lithium Iron Phosphate (LiFePO4) |
Charging Time | 4~6 Hours |
Discharging Time | >12 Hours |
CCT | 2700K~6500K |
Working Temp | -30°C ~ 50°C |
Led lumen | 120-200lm/w |
Lighting Mode | Photo Sensor + Remote Control |
Installation | Wall or Pole mount |
Customization | Accepted (Light mode, time, rainy days, lumen, etc.) |
