Split Solar Street Light with Adjustable Solar Panel | 60W-120W Outdoor LED Security Lighting
Maximize sun exposure and brightness with our premium Split Solar Street Light. Engineered for heavy-duty projects, this semi-integrated solar system features an independent, adjustable solar panel and a high-lumen LED fixture, ensuring optimal energy absorption even in shadowed areas. Equipped with a high-capacity LiFePO4 battery and smart MPPT controller, it delivers up to 5 nights of continuous lighting after a full charge. Perfect for highways, industrial parks, and municipal roads.

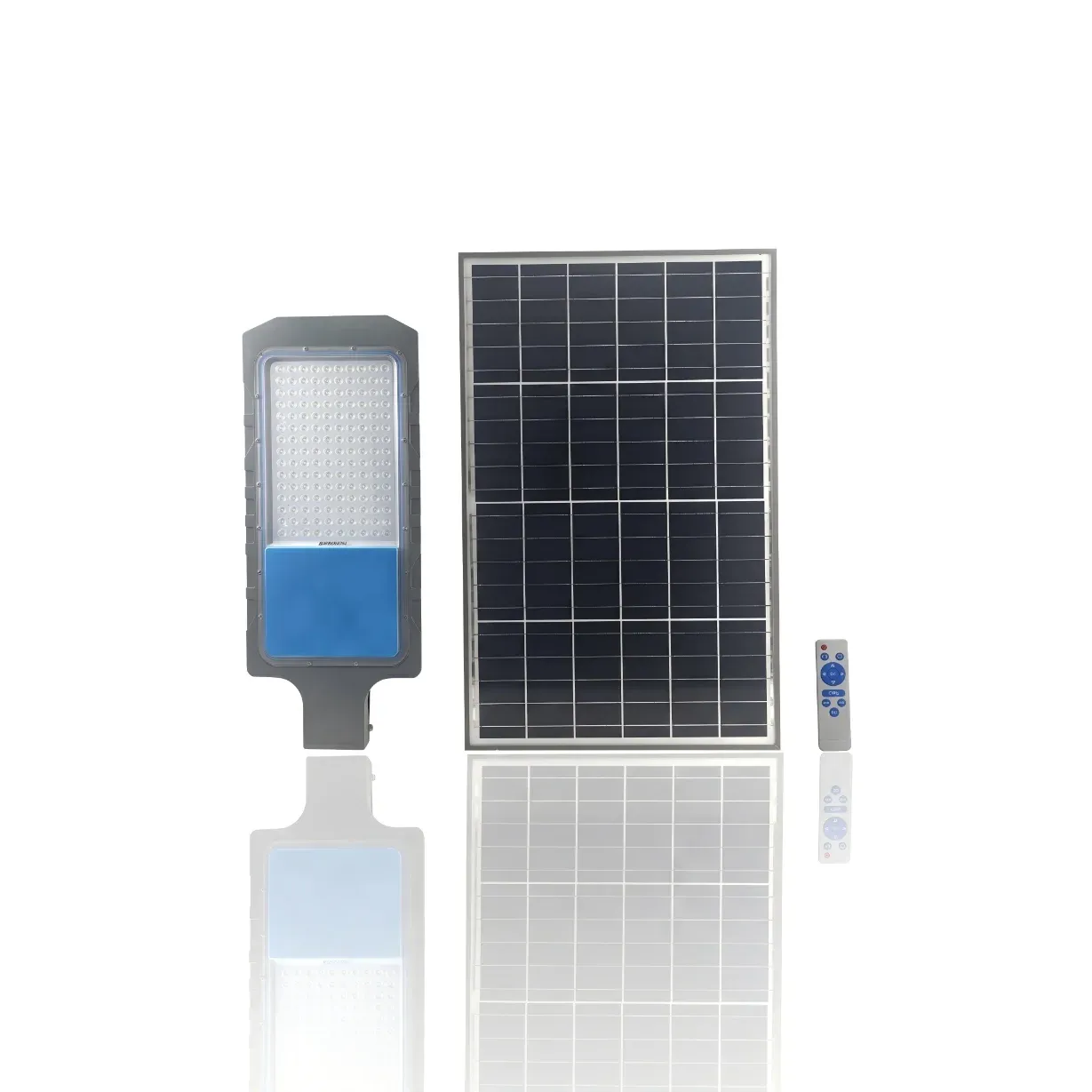

Split / Semi-integrated Solar Street Light's Picture
Split / Semi-integrated Solar Street Light's Specificate
Model | PN-16B0F-50W | PN-16B0F-100W | PN-16B0F-200W | PN-16B0F-300W |
LEDs | SMD3030 60pcs | SMD3030 100pcs | SMD3030 208pcs | SMD3030 300pcs |
Battery | 3.2V/12Ah | 3.2V/18Ah | 3.2V/24Ah | 3.2V/36Ah |
Solar Panel | 6V/20W | 6V/25W | 6V/30W | 6V/40W |
Panel Size (mm) | 350*460 | 350*520 | 350*630 | 670*460 |
Body Size (mm) | 440*180 | 490*200 | 540*220 | 540*220 |
Packing size (mm) | 640*510*398 | 640*510*398 | 790*478*458 | 790*478*458 |
QTY/CTN | 4pcs | 4pcs | 3pcs | 3pcs |
N.W/CTN (KG) | 15.84 | 18 | 24 | 29.4 |
G.W/CTN (KG) | 17.2 | 19.7 | 25.8 | 31.5 |

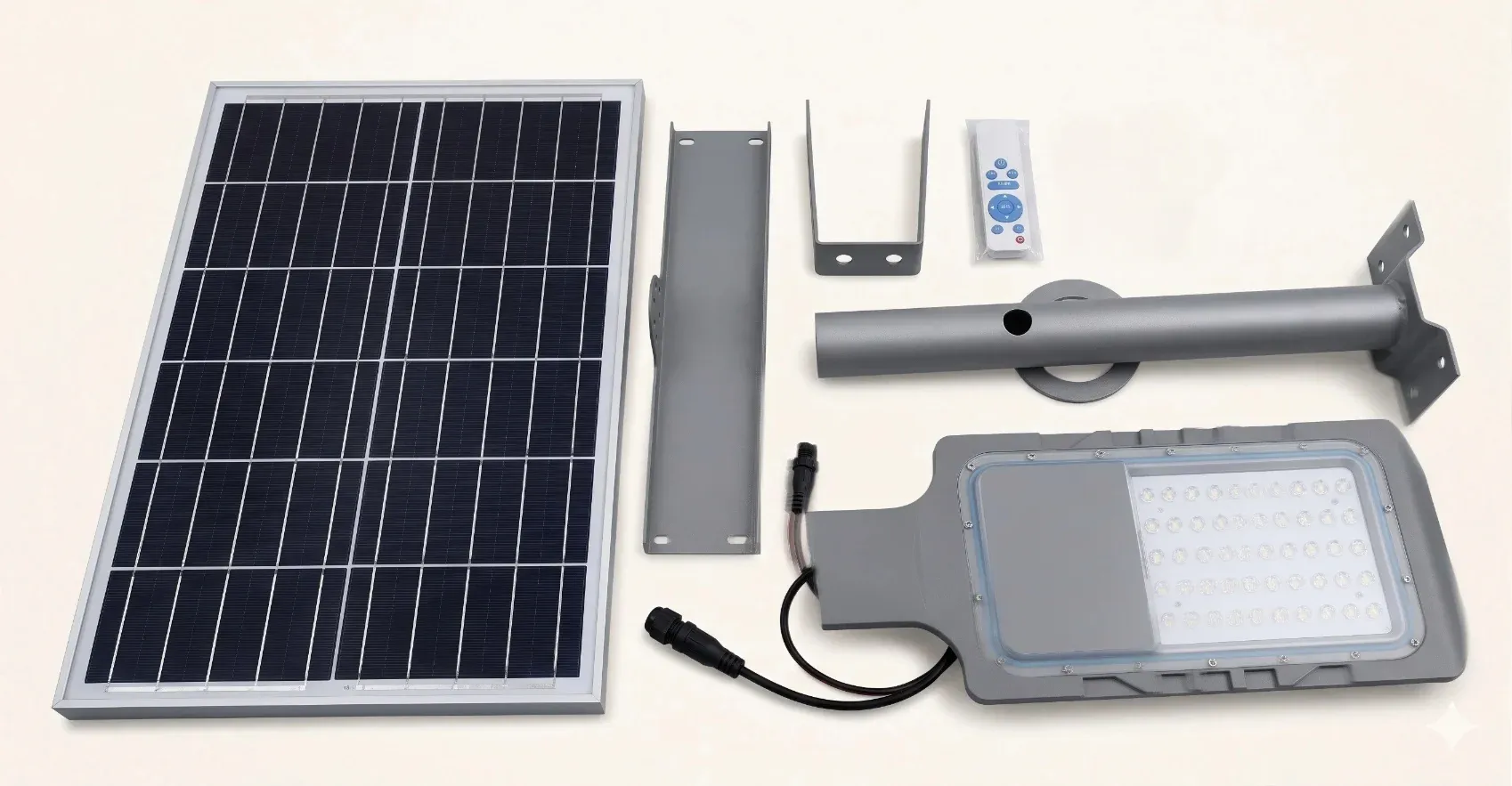

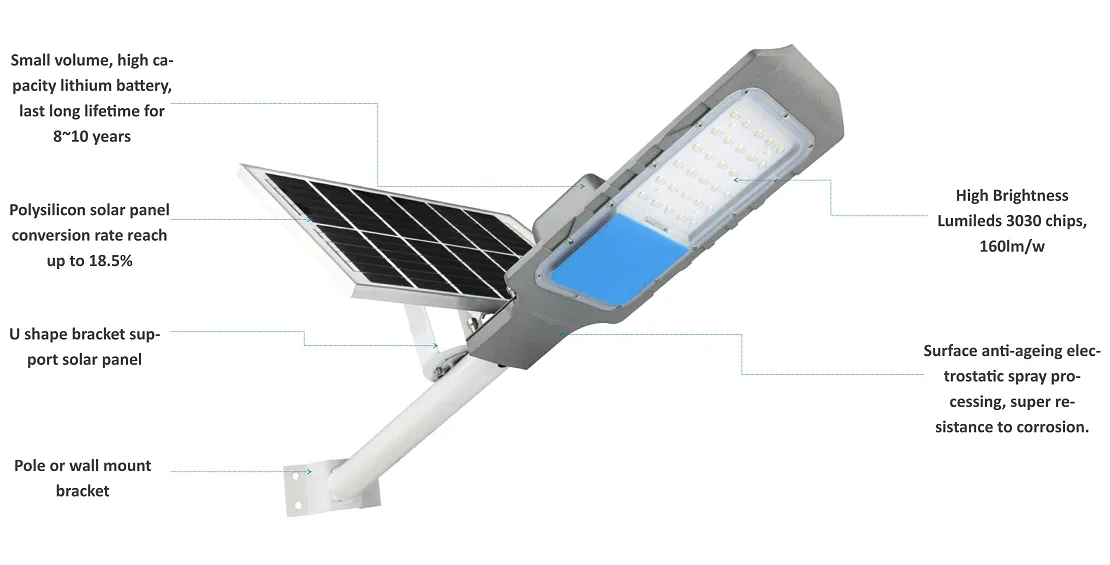

Split / Semi-integrated Solar Street Light's Detail Parts
Feature | Value |
Material | Aluminum |
Solar Panel Type | High-Efficiency Monocrystalline Silicon |
LED Light Source | Philips/Bridgelux Chips (High Lumens 160lm/W-180lm/W) |
Battery Capacity | New Generation LiFePO4 Battery (12.8V Grade A) |
Controller Technology | Smart MPPT Tracking Controller (98% Charging Efficiency) |
Working Mode | Time Control / Smart Dimming |
Charging Time | 4~6 Hours |
Discharging Time | >12 Hours |
CCT | 2700K~6500K |
Working Temp | -30°C ~ 50°C |
Led lumen | 120-200lm/w |
Waterproof Rating | IP65 Waterproof & IK08 Marine Grade Anti-Corrosion |
Installation | Wall or Pole mount |
Customization | Accepted (Light mode, time, rainy days, lumen, etc.) |
Certificate | CE |
Why Choose Split Solar Street Lights Over All-in-One Systems?
While All-in-One solar lights are compact, their fixed solar panels often miss the best sunlight angles, leading to low efficiency. Our Split Solar Street Light separates the high-efficiency monocrystalline solar panel from the LED fixture.
- 360° Adjustable Panel: Pivot the solar panel to face the sun perfectly, boosting charging efficiency by up to 30%.
- Better Thermal Management: Separating the battery and LED light source prevents overheating, extending the lifespan of the LiFePO4 battery to over 10 years.

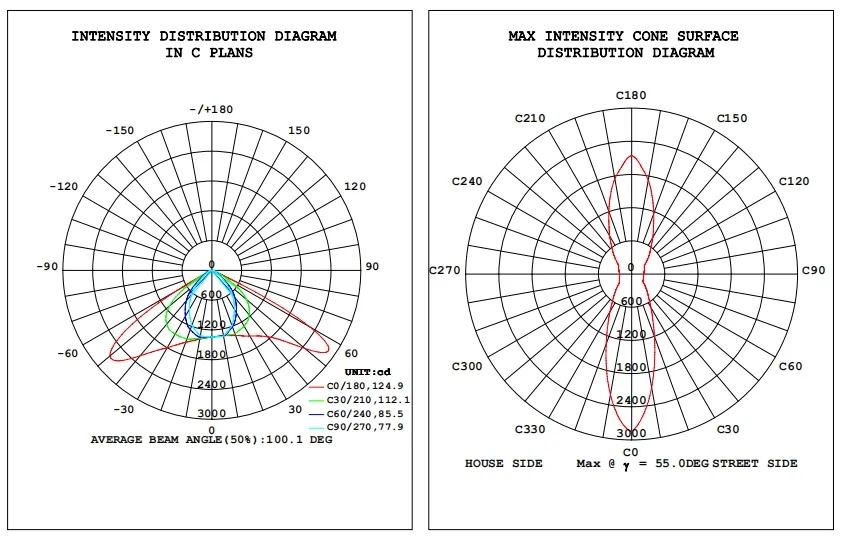

Light Distribution Curve Chart:

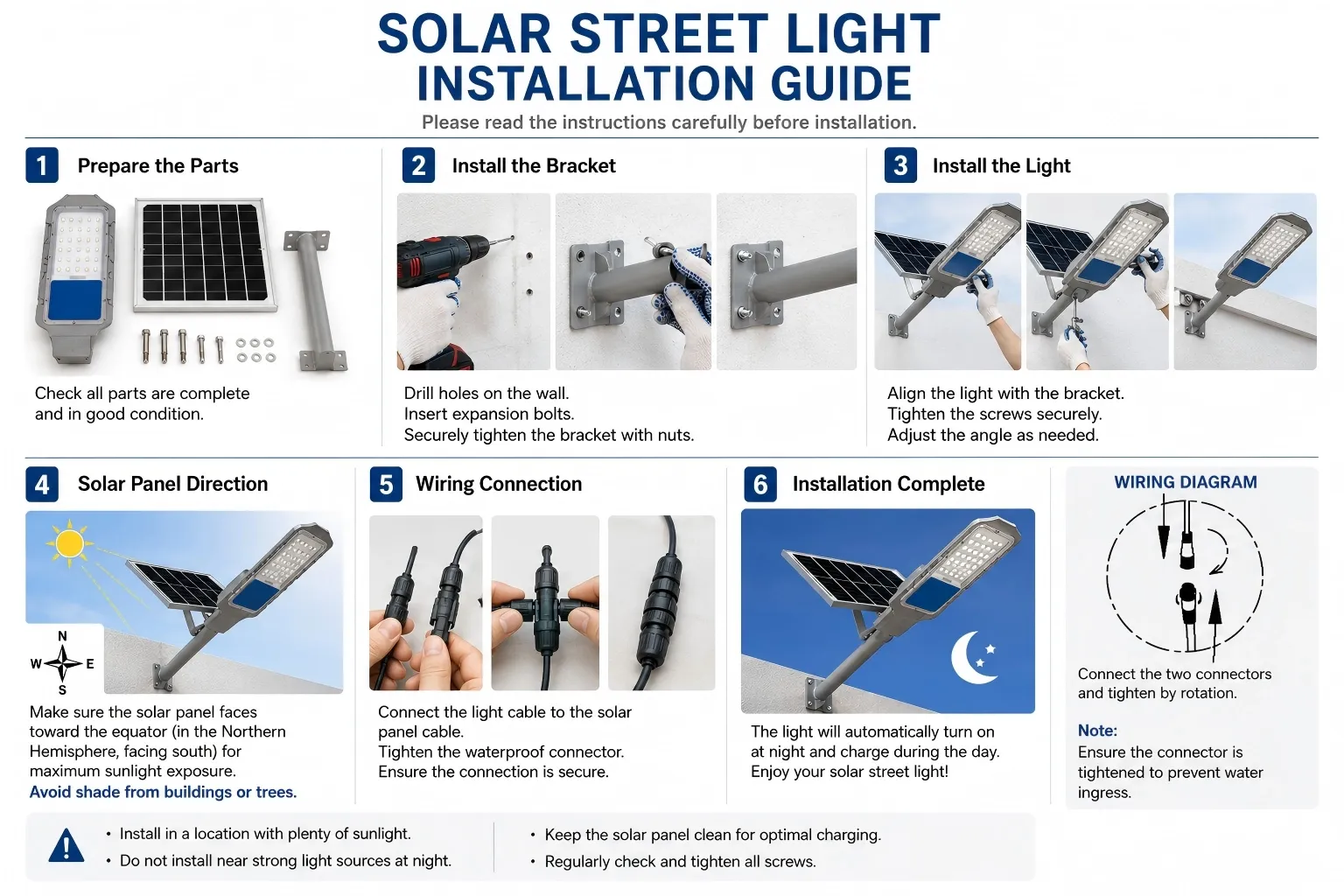

Installation Manual:

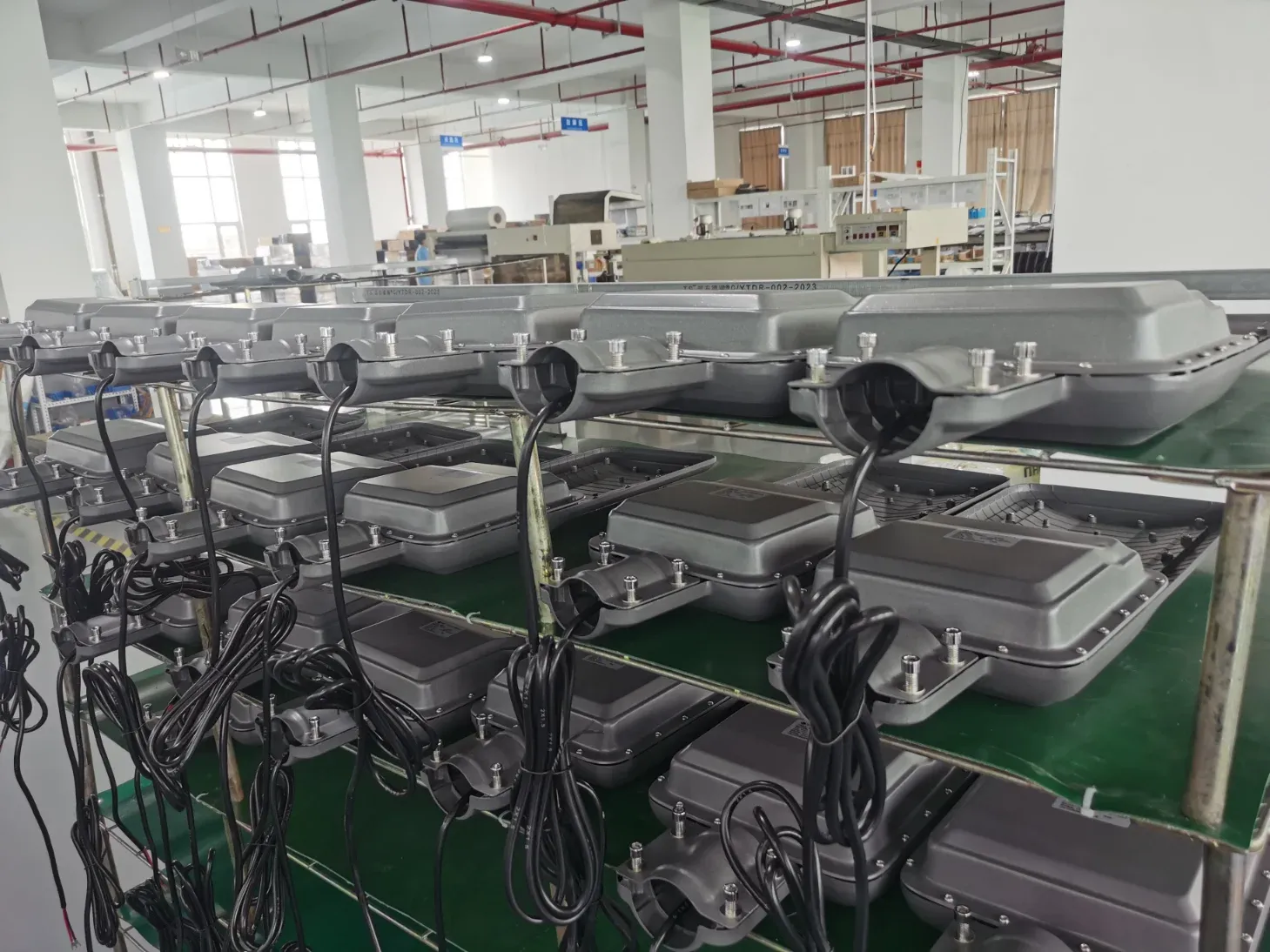

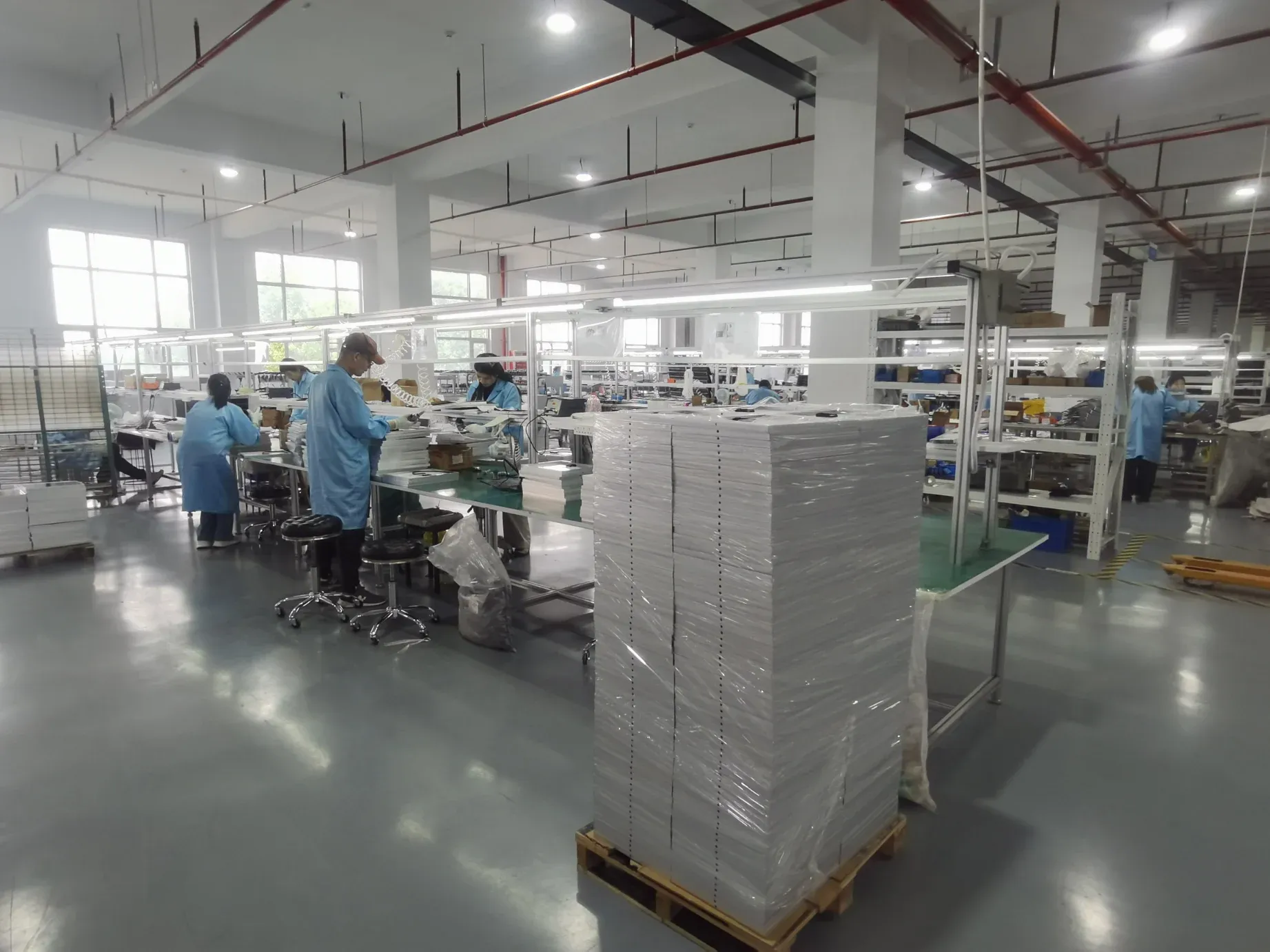

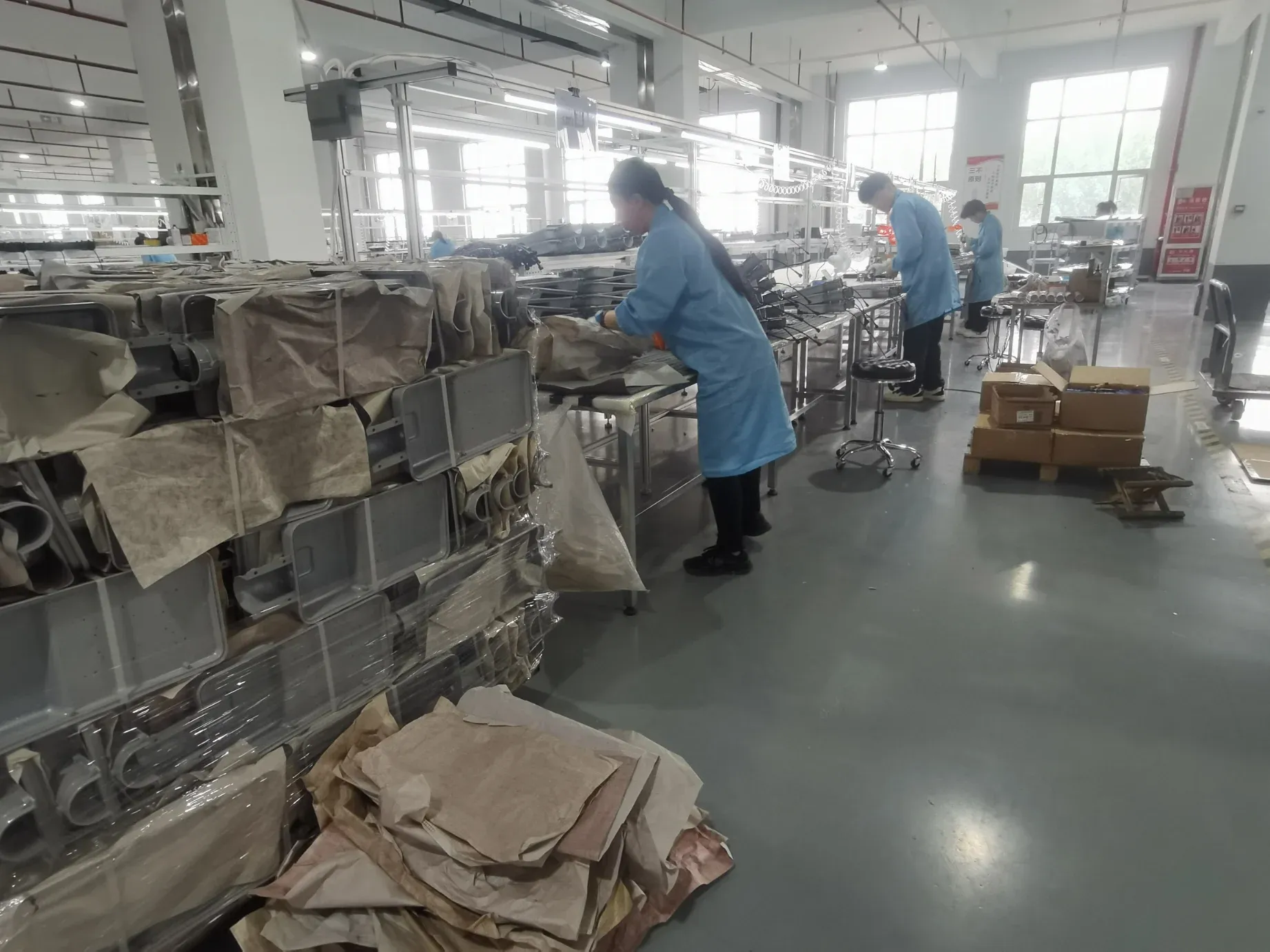

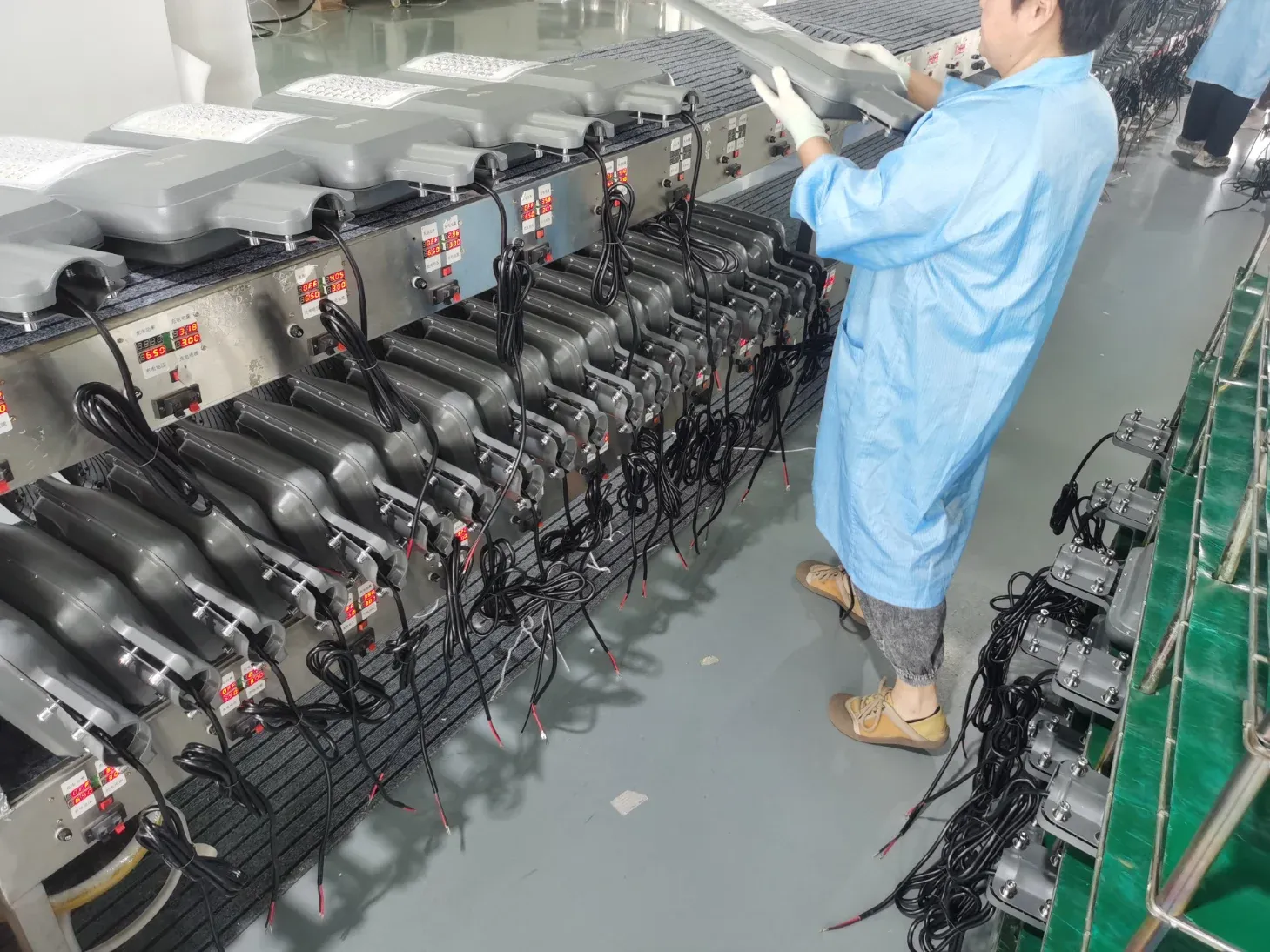

Production Line:
